浏览器自带分享功能也很好用哦~The cold storage board has a fixed length, width and thickness. The high and medium temperature cold storage generally uses a 10 cm thick plate, and the low temperature storage and freezing storage generally use a 12 cm or 15 cm thick plate.
The cold storage board can be divided into the following categories according to the production materials and the requirements of the cold storage industry:
(1) Cold storage board (polystyrene): The polystyrene foam sandwich panel of the cold storage board is made of color steel plate as the surface layer, closed-cell flame retardant polystyrene foam as the core material, and the color steel plate is pressed by an automatic continuous forming machine. It is a high-efficiency mechanism material formed by high-strength bonding after molding. Specifications of cold storage sandwich panel: 1. Thickness of cold storage panel (mm) 50, 75, 100, 150, 200, 250 2. Length of cold storage panel (mm) Due to continuous molding production, the length of the panel can be determined according to the needs of the project, but it is generally not suitable for transportation reasons. More than 12000 3. The width of the cold storage board (mm) is 1200 for splicing, 1200 for the plug-in type, 1150 for the plug-in type 4. The weight of the cold storage board (the surface of the board is 0.6 thick colored steel plate)
(2) Cold storage board (polyurethane): 1. The cold storage board is made of light polyurethane with good heat insulation performance as the inner material, and the plywood type storage board is composed of SII, PVC color steel plate and stainless steel plate on the outside, which can reduce the temperature difference between inside and outside. heat transfer to achieve the maximum efficiency of freezing and refrigeration systems. 2. Thickness specification of cold storage board: 60, 75, 100, 120, 150, 180mm 3. Size specification of cold storage board: The standardized warehouse board width is 960 mm, and the height is 2 meters to 10 meters. (Additionally: it can also be customized according to your special requirements)
The choice of the cold storage board is very important for the cold storage, because the cold storage is different from other warehouses, and the cold storage has high environmental requirements such as temperature and humidity. Therefore, when choosing the cold storage board, pay attention to the material and thermal insulation strength of the board, and choose the correct board to better maintain the cold storage.
The cold storage board has a fixed length, width and thickness. The high and medium temperature cold storage generally uses a 10 cm thick plate, and the low temperature storage and freezing storage generally use a 12 cm or 15 cm thick plate; in order to ensure the strength of the cold storage, the thickness is generally 0.4 cm. Above MM, the foam density of cold storage board is 38KG-40KG/cubic meter per cubic meter according to the national standard. Now there are polyurethane sandwich panels with better performance. The thermal insulation material foamed by polystyrene is thin in density and not enough for thermal insulation. It is generally used in special equipment. Polyethylene is a good raw material. After a certain comparison, it can be foamed. It is a thermal insulation material with suitable density, good thermal insulation effect and high load-bearing capacity. Polyurethane board is better, has better thermal insulation performance, and does not absorb moisture.
The main protective materials of cold storage panels are as follows:
A. Embossed aluminum plate
B. Stainless steel plate
C, color zinc steel plate
D. Salted steel plate
E. Standard floor plate: 1.0mm galvanized sheet

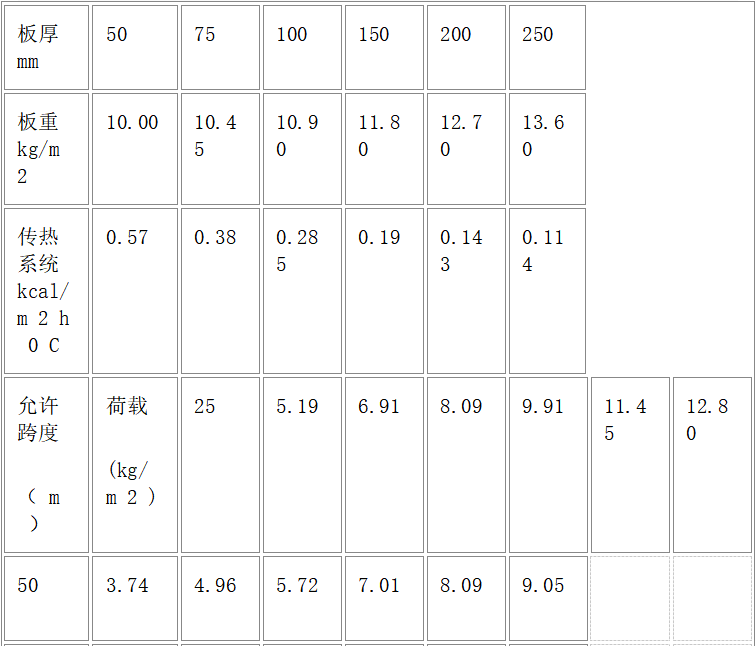

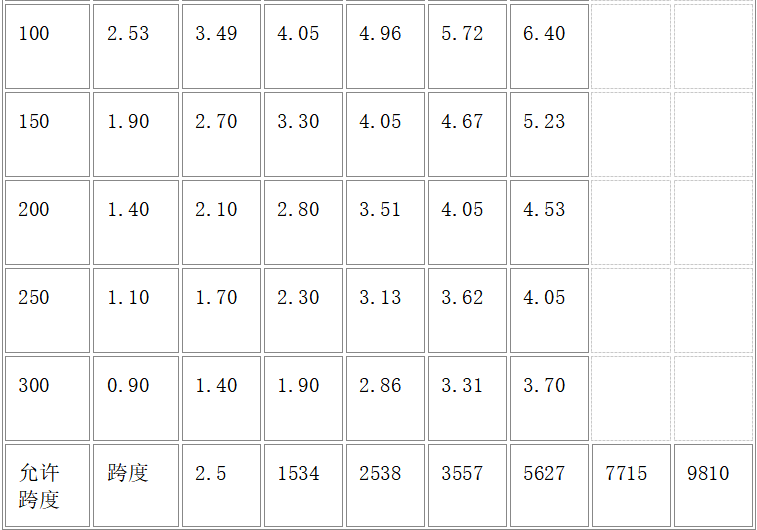

Library board performance parameters
The cold storage board has a fixed length, width and thickness. The high and medium temperature cold storage generally uses a 10 cm thick plate, and the low temperature storage and freezing storage generally use a 12 cm or 15 cm thick plate.
The cold storage board can be divided into the following categories according to the production materials and the requirements of the cold storage industry:
(1) Cold storage board (polystyrene): The polystyrene foam sandwich panel of the cold storage board is made of color steel plate as the surface layer, closed-cell flame retardant polystyrene foam as the core material, and the color steel plate is pressed by an automatic continuous forming machine. It is a high-efficiency mechanism material formed by high-strength bonding after molding. Specifications of cold storage sandwich panel: 1. Thickness of cold storage panel (mm) 50, 75, 100, 150, 200, 250 2. Length of cold storage panel (mm) Due to continuous molding production, the length of the panel can be determined according to the needs of the project, but it is generally not suitable for transportation reasons. More than 12000 3. The width of the cold storage board (mm) is 1200 for splicing, 1200 for the plug-in type, 1150 for the plug-in type 4. The weight of the cold storage board (the surface of the board is 0.6 thick colored steel plate)
(2) Cold storage board (polyurethane): 1. The cold storage board is made of light polyurethane with good heat insulation performance as the inner material, and the plywood type storage board is composed of SII, PVC color steel plate and stainless steel plate on the outside, which can reduce the temperature difference between inside and outside. heat transfer to achieve the maximum efficiency of freezing and refrigeration systems. 2. Thickness specification of cold storage board: 60, 75, 100, 120, 150, 180mm 3. Size specification of cold storage board: The standardized warehouse board width is 960 mm, and the height is 2 meters to 10 meters. (Additionally: it can also be customized according to your special requirements)
The choice of the cold storage board is very important for the cold storage, because the cold storage is different from other warehouses, and the cold storage has high environmental requirements such as temperature and humidity. Therefore, when choosing the cold storage board, pay attention to the material and thermal insulation strength of the board, and choose the correct board to better maintain the cold storage.
The cold storage board has a fixed length, width and thickness. The high and medium temperature cold storage generally uses a 10 cm thick plate, and the low temperature storage and freezing storage generally use a 12 cm or 15 cm thick plate; in order to ensure the strength of the cold storage, the thickness is generally 0.4 cm. Above MM, the foam density of cold storage board is 38KG-40KG/cubic meter per cubic meter according to the national standard. Now there are polyurethane sandwich panels with better performance. The thermal insulation material foamed by polystyrene is thin in density and not enough for thermal insulation. It is generally used in special equipment. Polyethylene is a good raw material. After a certain comparison, it can be foamed. It is a thermal insulation material with suitable density, good thermal insulation effect and high load-bearing capacity. Polyurethane board is better, has better thermal insulation performance, and does not absorb moisture.
The main protective materials of cold storage panels are as follows:
A. Embossed aluminum plate
B. Stainless steel plate
C, color zinc steel plate
D. Salted steel plate
E. Standard floor plate: 1.0mm galvanized sheet
Library board performance parameters
