Open type air-cooled condensing unit (Tecumesh hermetic scroll compressor)
浏览器自带分享功能也很好用哦~This series products feature air cooled open type structure with Copeland scroll, or Maneurop hermetic Danfoss compressors, copper and fin condensers, and external fans, make high efficiency, low level noise and pleasant looking, and long use terms.
1.Product description
This series products feature air cooled open type structure with Copeland scroll, or Maneurop hermetic Danfoss compressors, copper and fin condensers, and external fans, make high efficiency, low level noise and pleasant looking, and long use terms.
2.Main components:
Compressor, pressure limitator, liquid receiver, H/L pressure gauge, anc ondenser.

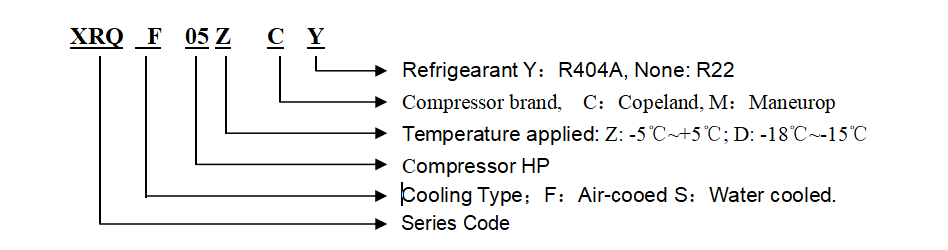

3.Model code
4.Specifications:

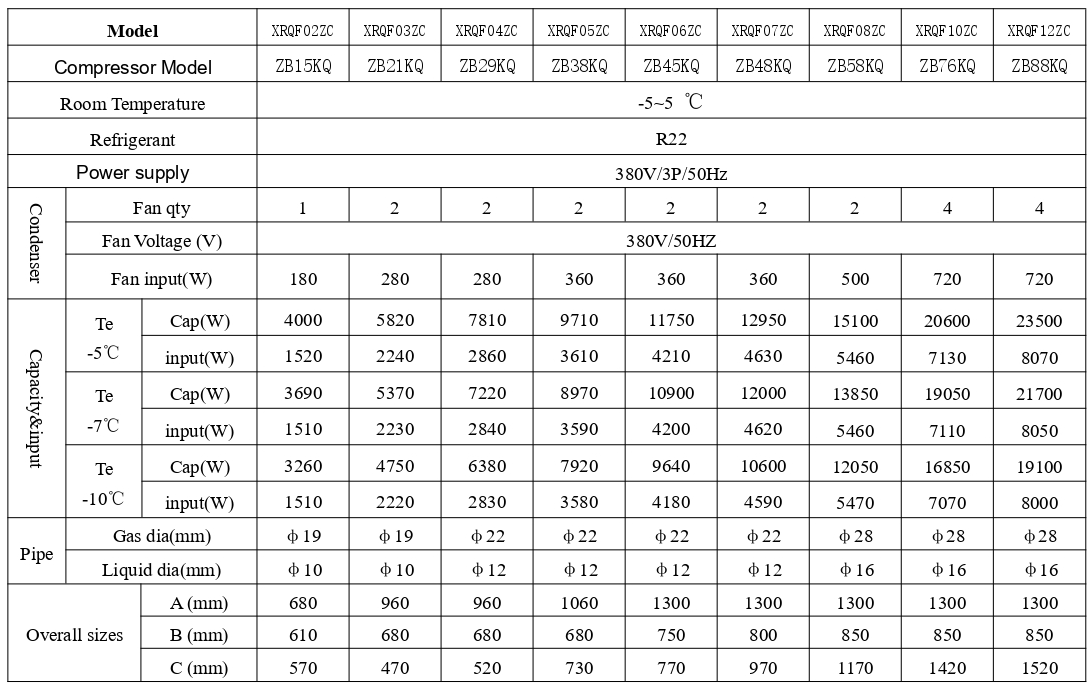

4.1 Copeland ZB compressor units
Capacity test condition: condensing temperature 40℃. R404a data is available on requirement, and single phase power supply units are available for the 2~4hp units.

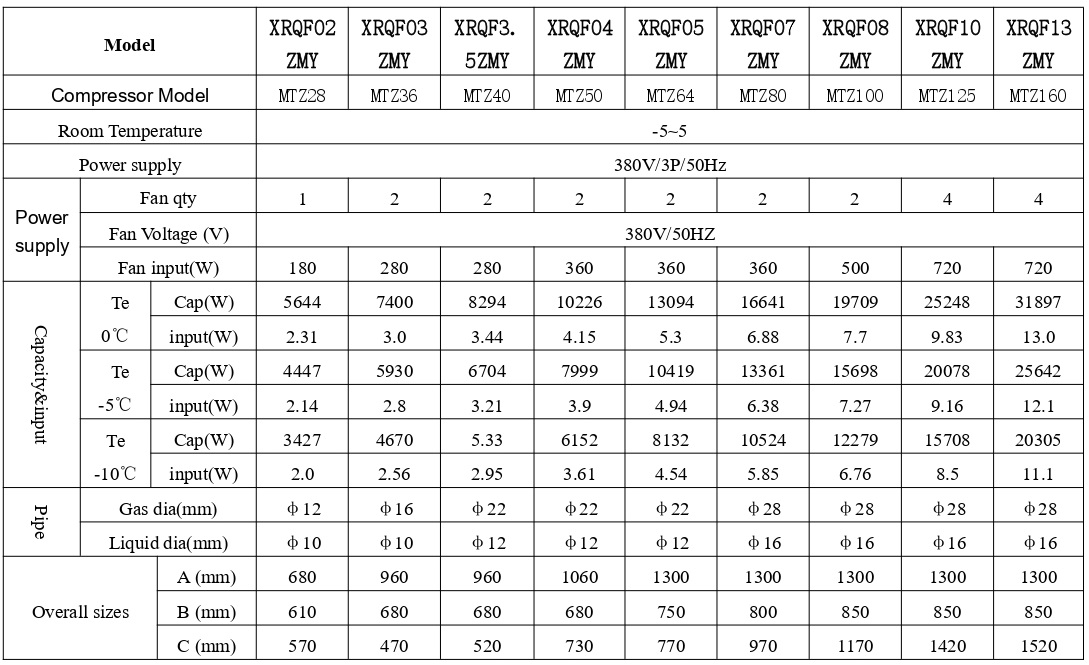

4.2Maneurop MT compressor units
Capacity test condition: condensing temperature 45℃. R404a data is available on requirement, and single phase power supply units are available for the 2~4hp units.

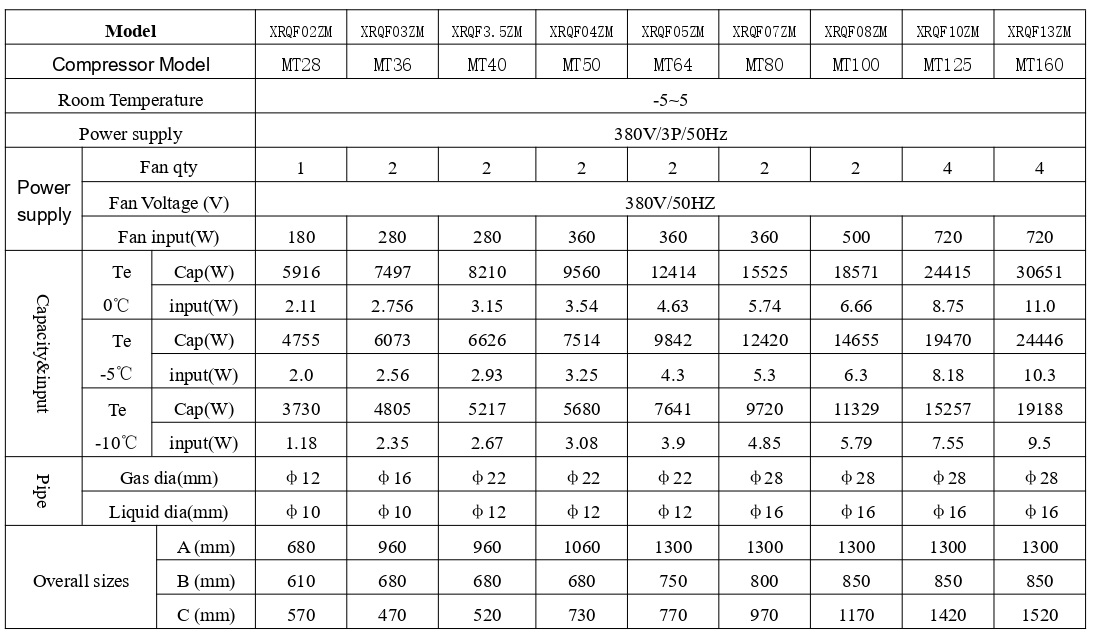

4.2.1 R22 Unit

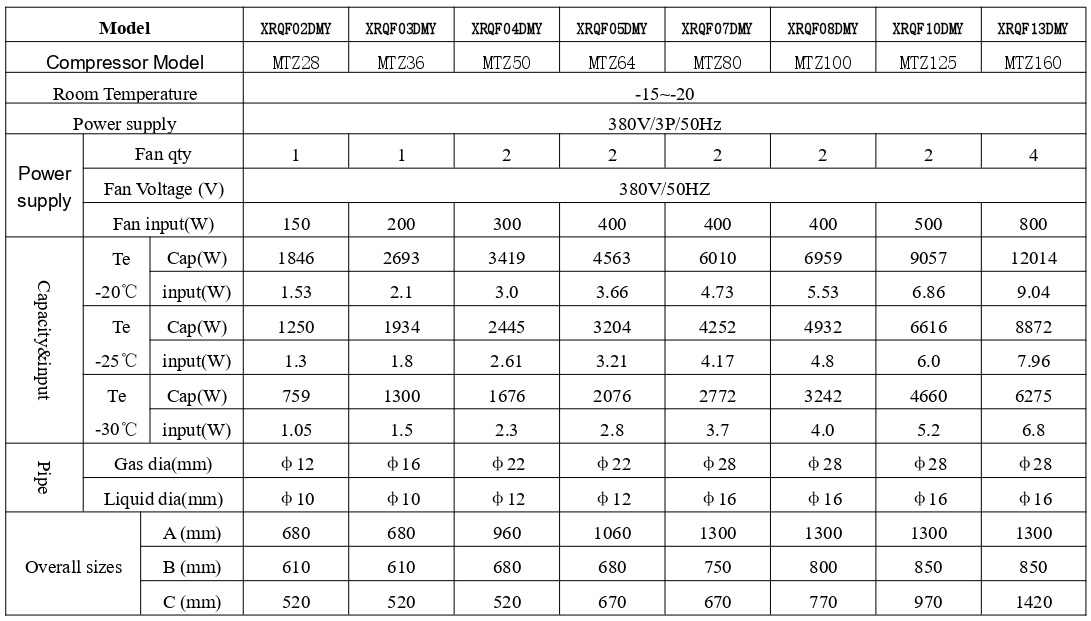

4.2.2 R404A Unit
5.Diagrams for Overall sizes
5.1 Copeland ZB series:
5.2 Maneurop MT series:
