1.Product description
This series product features wide temperature range, can be widely used for freshness retain,cold storage,ice-making and cooling water equipments. They empoy Bitzer semi-hermetic compressor, copper pipe & Alu.sheet air-cooling condenser and Tube and shell water condenser with high efficient heat exchange and long service life；The Air-cooled unit adopts external rotor fan, features low noise, high effieient. All products adopt domestic or world famous brand components.
2. Main components
①compressor ②oil heating ③vibration eliminator ④oil separator ⑤condenser ⑥receiver ⑦filter ⑧sight glasses ⑨solenoid valve ⑩H/L P gauge ⑪mechnical P controller ⑫oil protection ⑬gas separator ⑭suction filter ⑮cylinder fan
The above components may be different for air cooled and water cooled products.

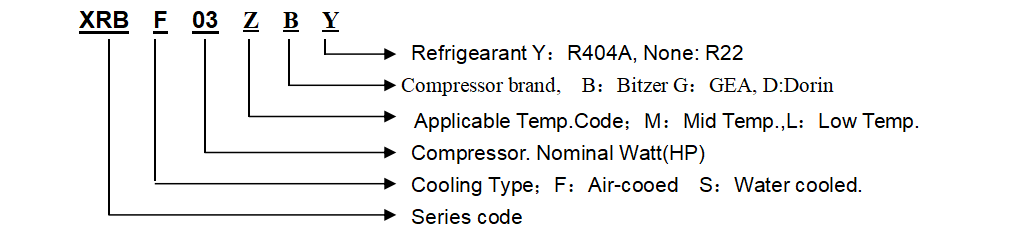

3. Model code
4. Specifications

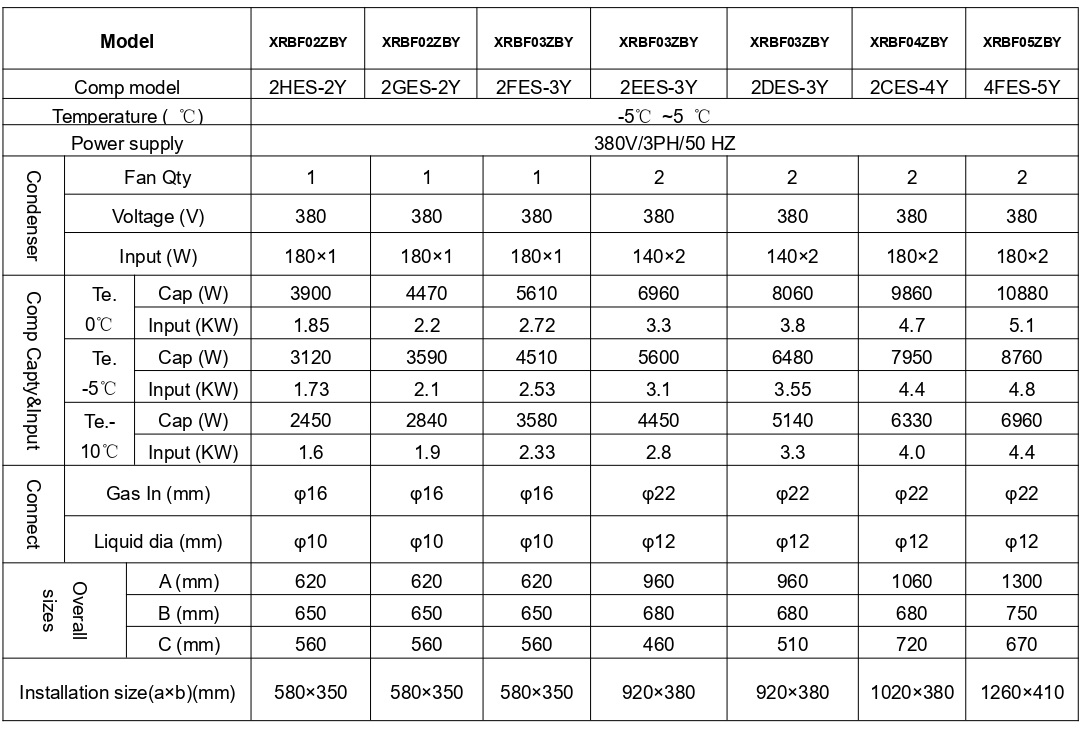

4.1 Air cooled units.

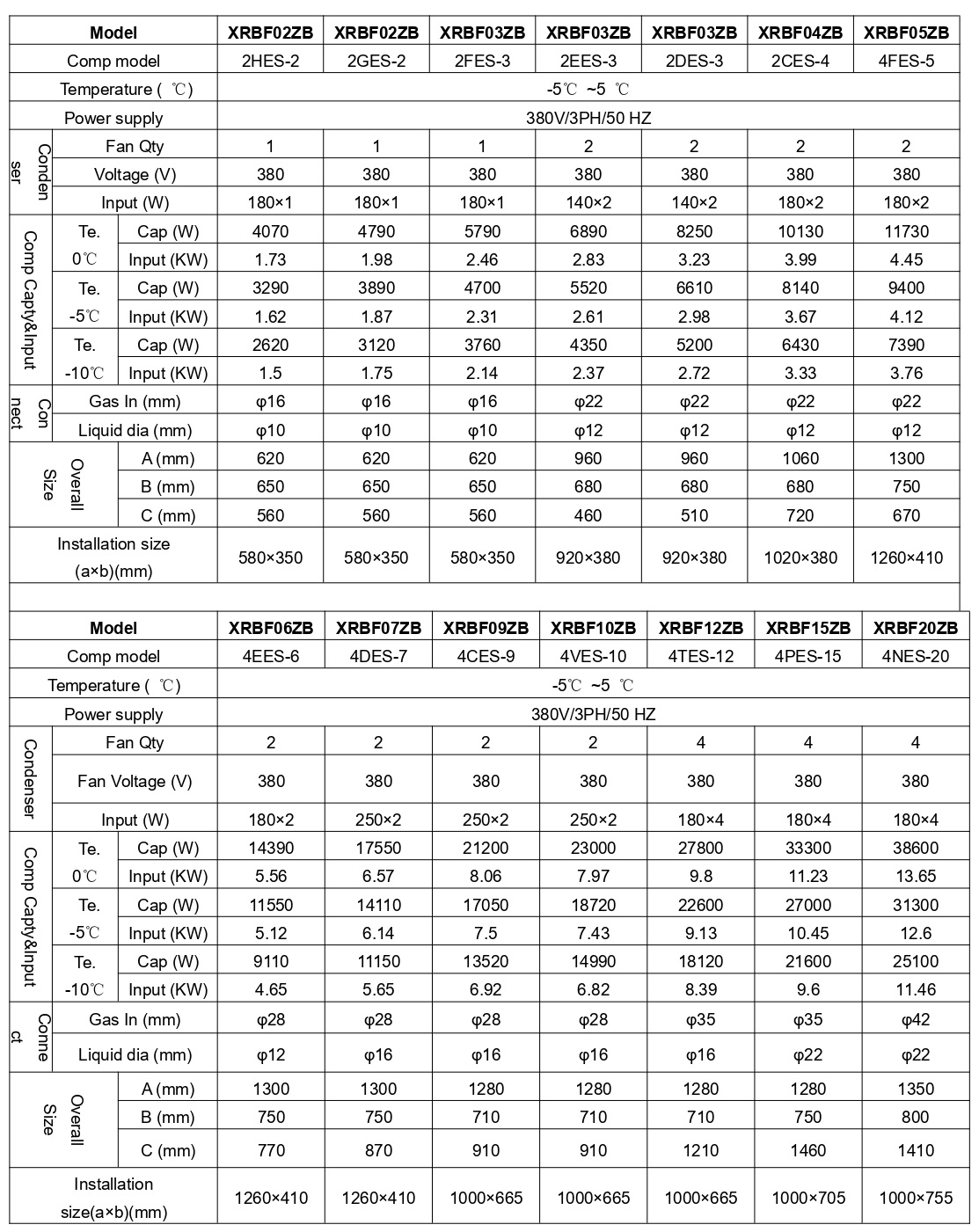

Air cooled refrigerant R22 units
Mid.Temp. units

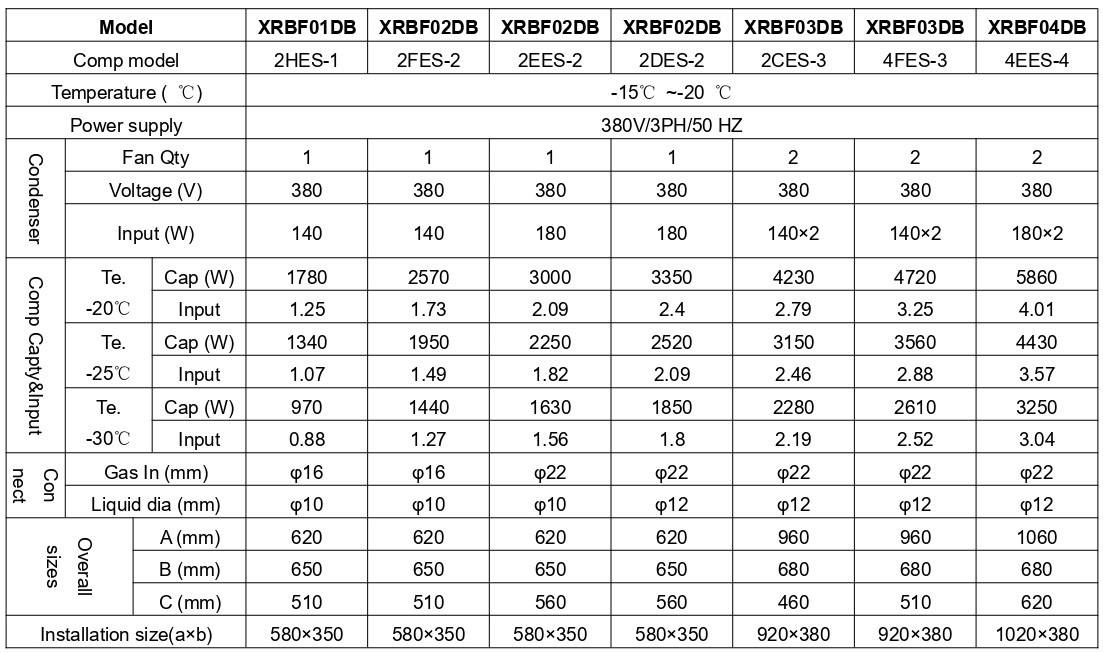

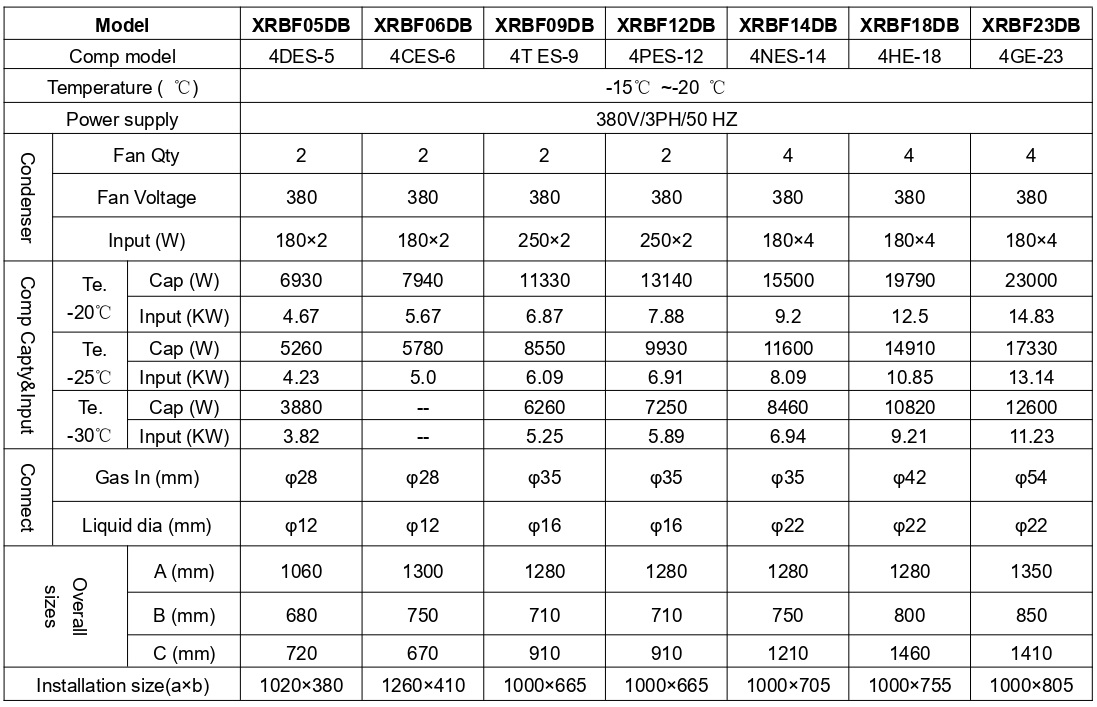

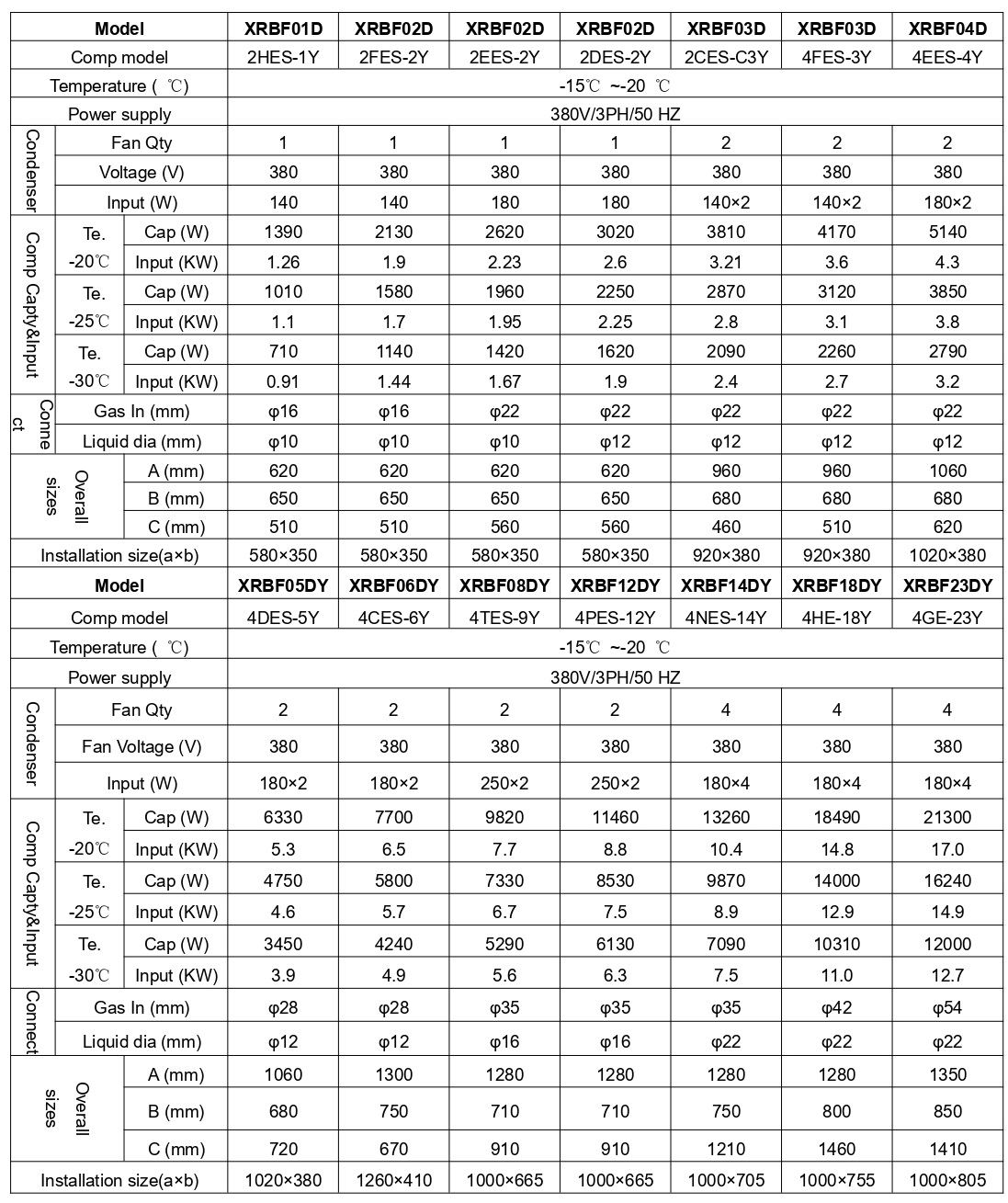

4.2 Air cooled refrigerant R22 units
Low.Temp. units
Remark：
(1) Condensing Tem.is 50℃；
(2) Forthe unit model bigger than XRBF08L，CICliquid injection system will be necessary when the unit will work for the evaporation temperature below -23℃.
(3) For unitPowerabove 30HP, it will be provided with the condenser and unitseparated.

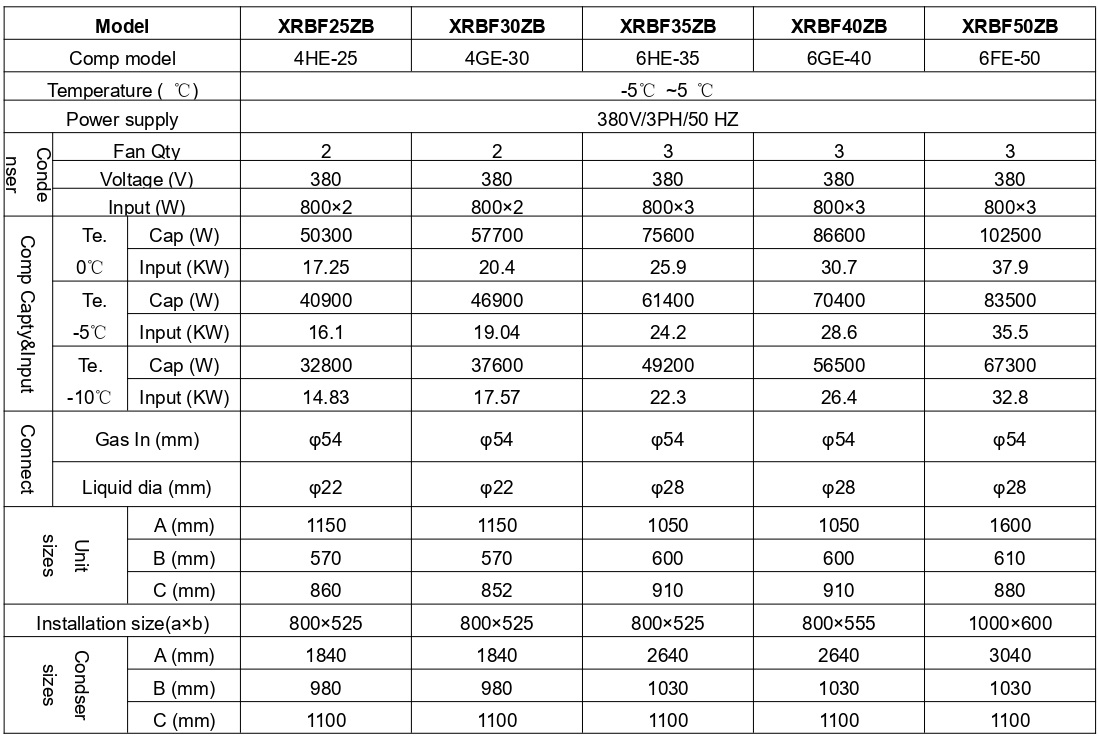

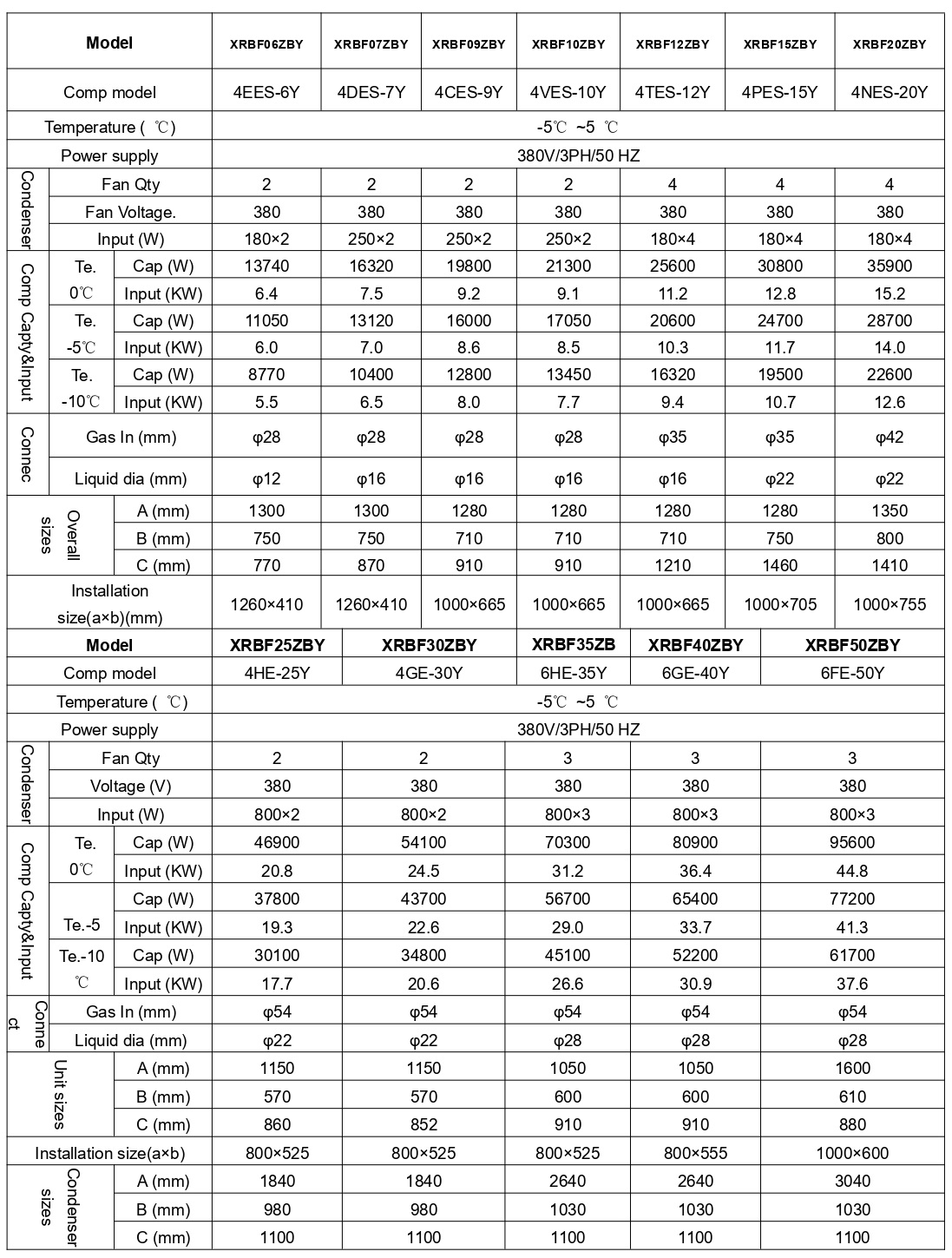

Air cooled refrigerant R404Aunits Mid.Temp. units
Remark：
(1)Condensing Tem.is 50℃；
(2)For unitPowerabove25HP, it will be provided with the condenser and unitseparated.

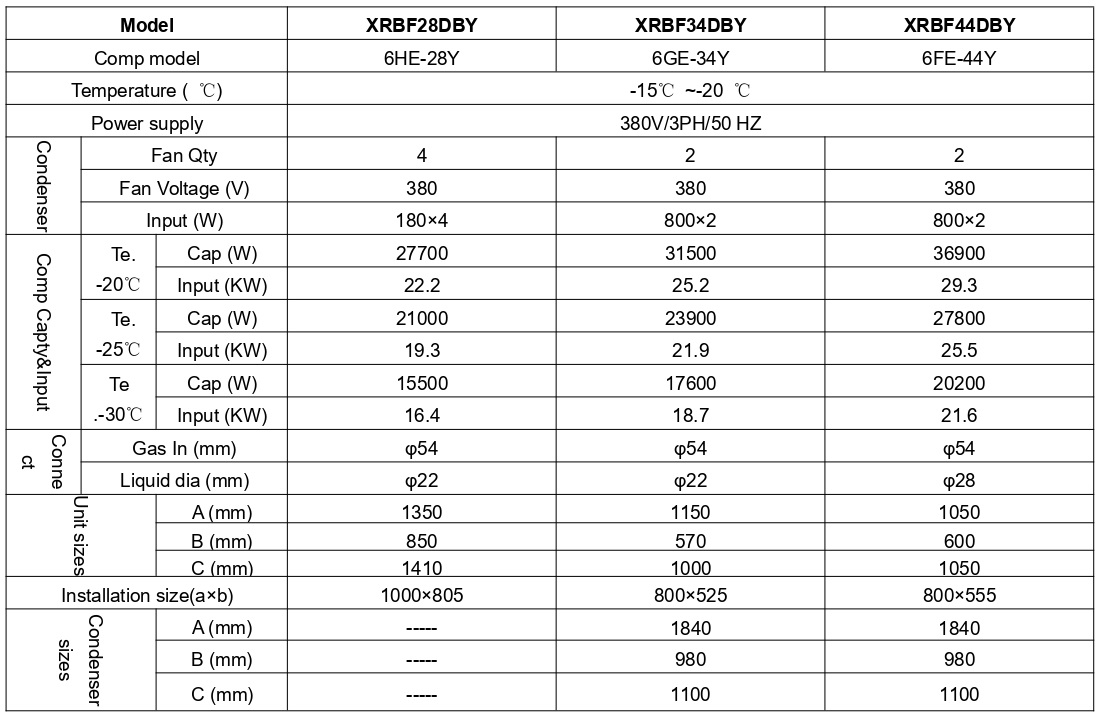

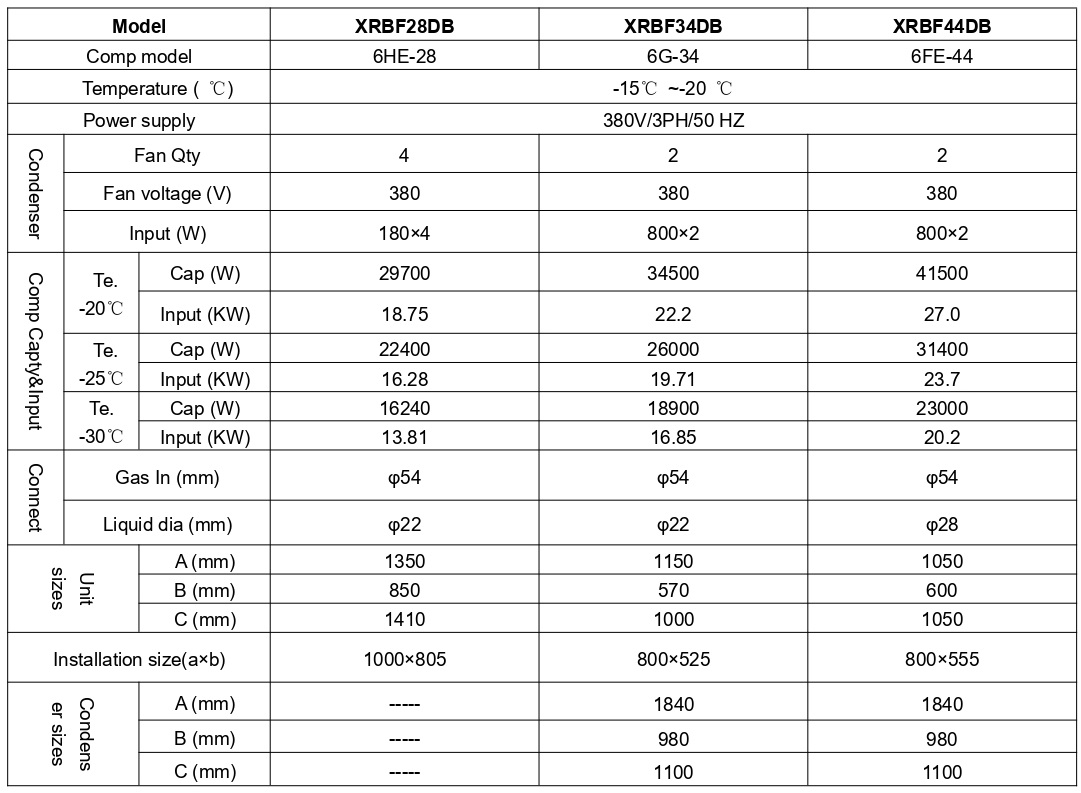

Air cooled refrigerant R404Aunits
Low.Temp. units
Remark：
1、Condensing Tem.is 50℃；
2、For unit above 30HP,install the condenser and unit separately.
Water cooled units.

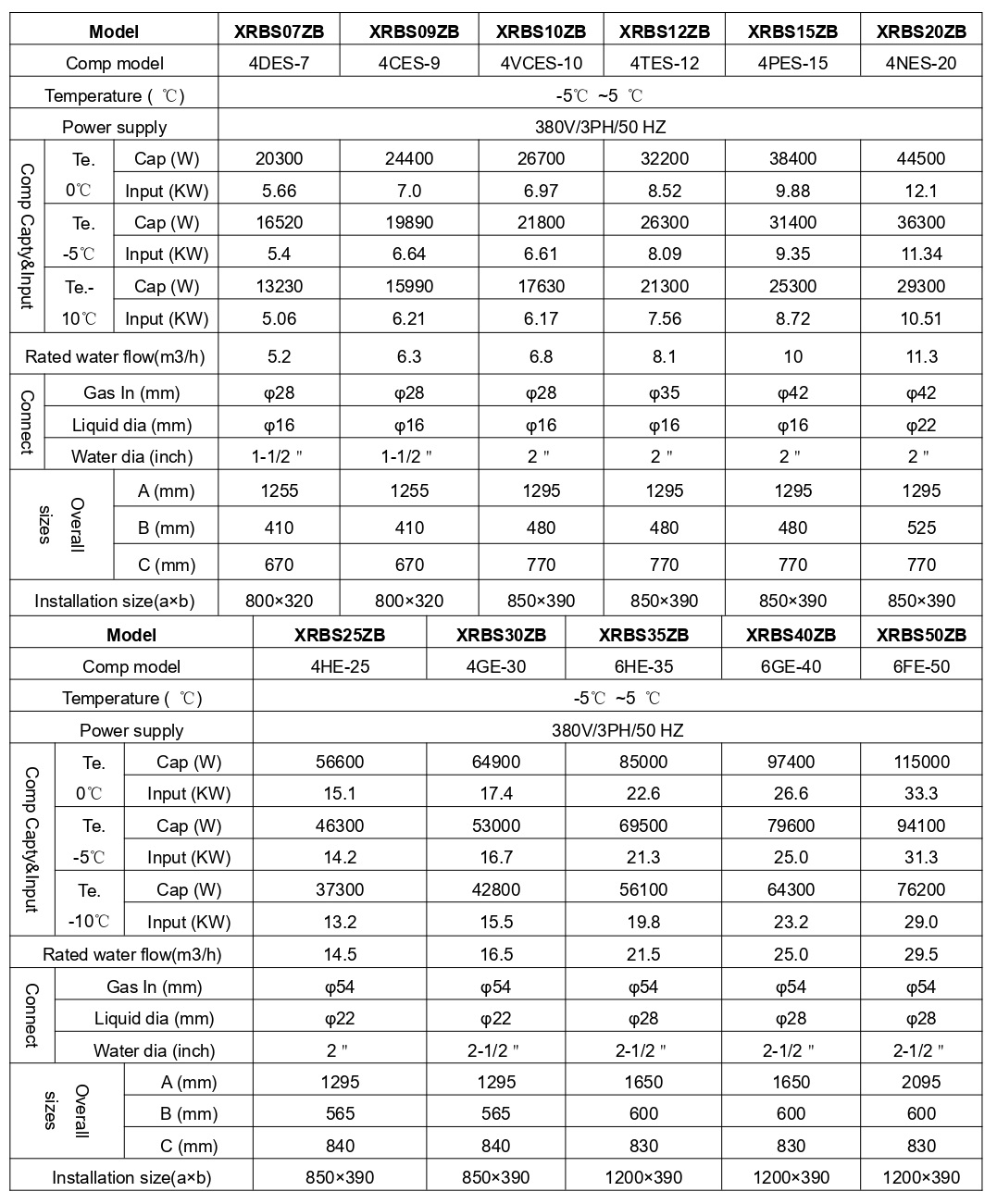

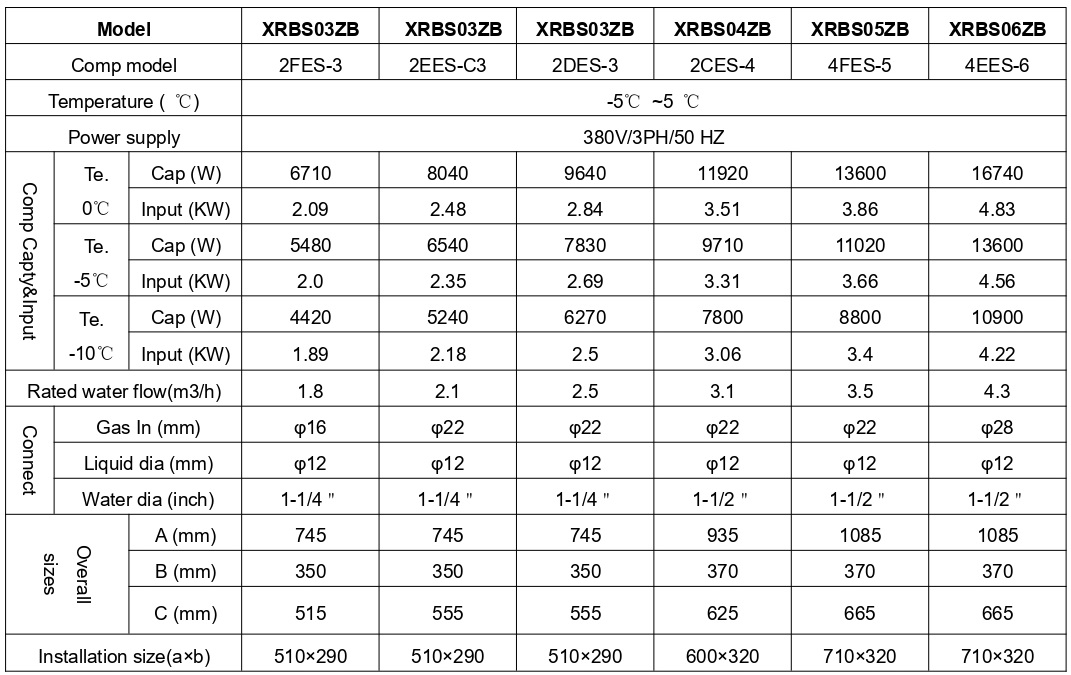

Water cooled refrigerant R22 ,Condensing Tem.40℃
Mid.Temp. units

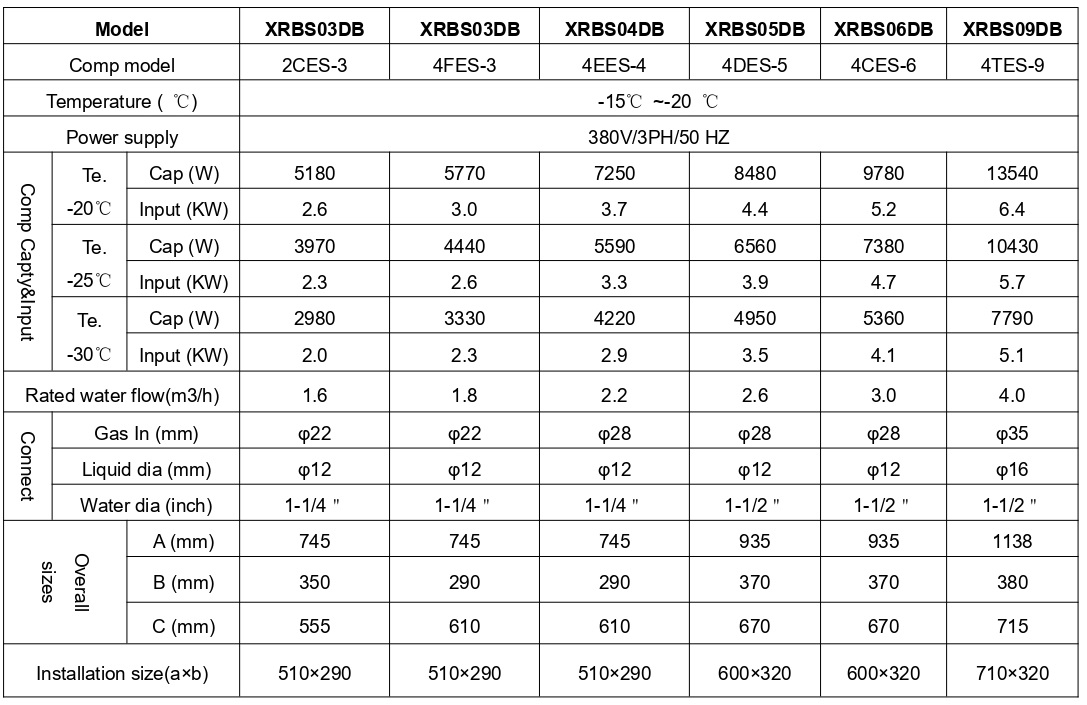

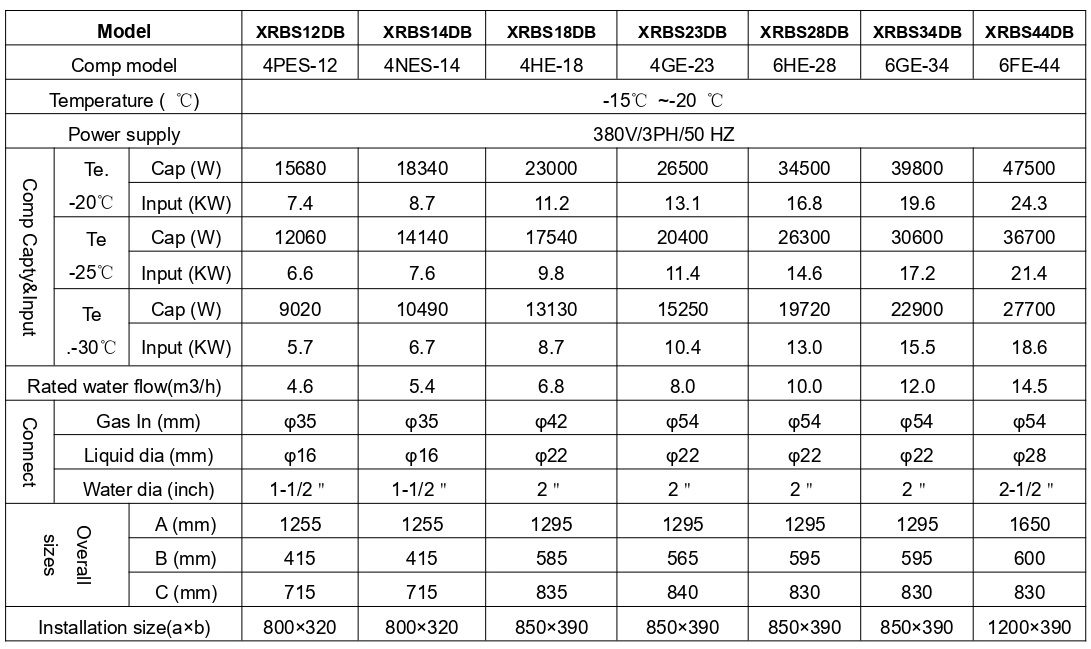

4.3 Water cooled refrigerant R22,Condensing Tem.40℃
Low.Temp. units

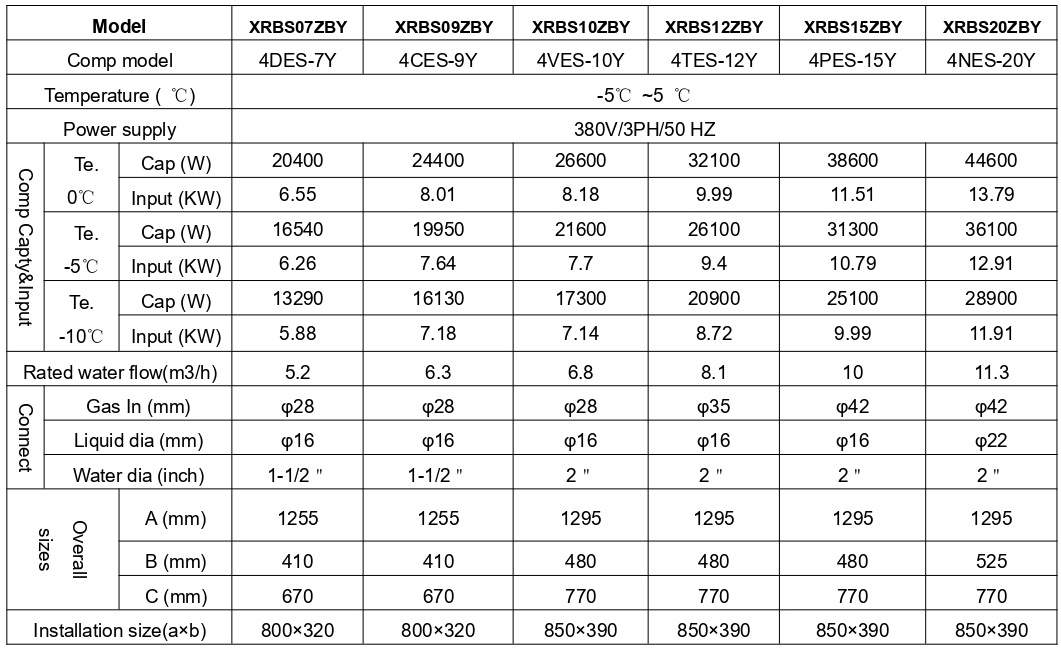

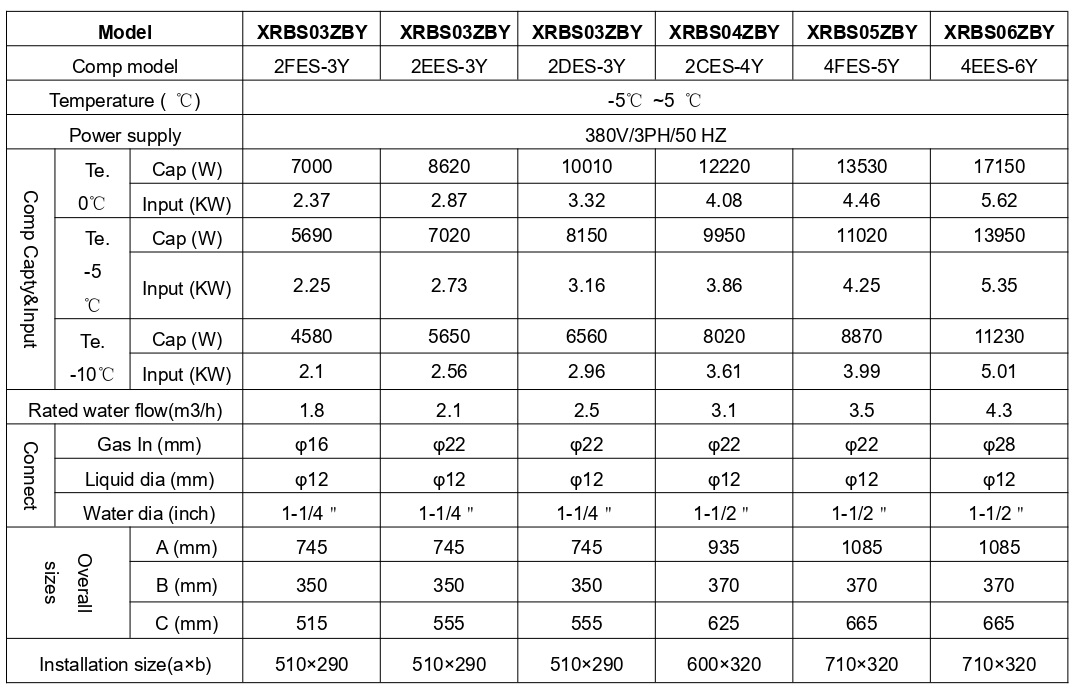

4.4Water cooled refrigerant R404A,Condensing Tem.40℃
Mid.Temp. units

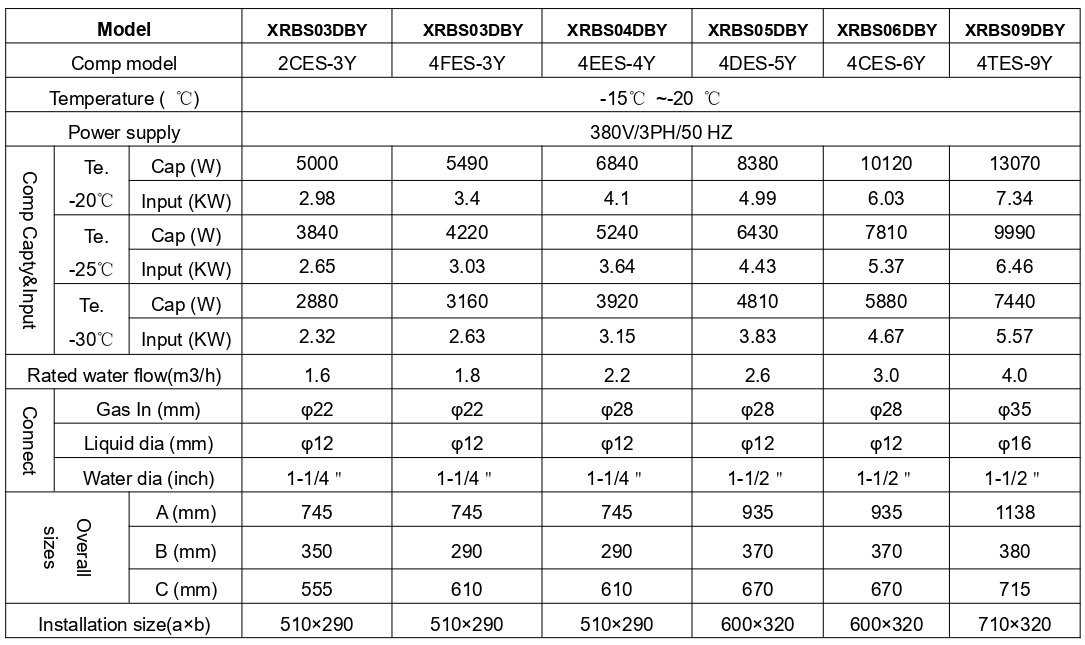

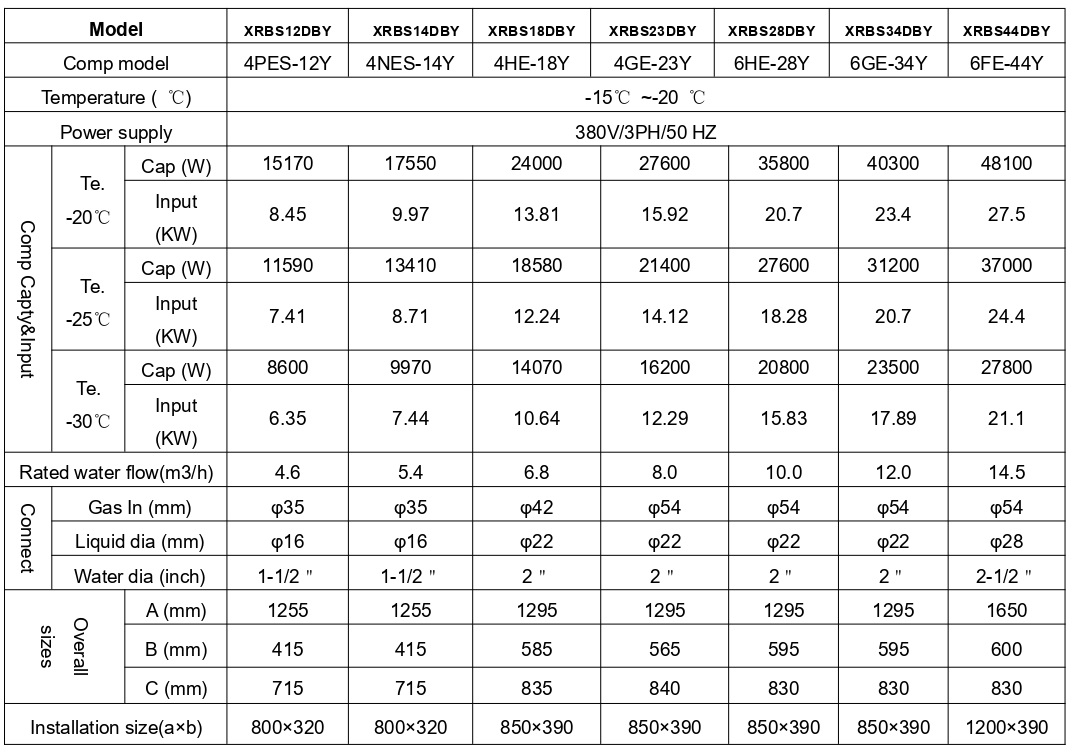

4.5 Water cooled refrigerant R404A,Condensing Tem.40℃
Low.Temp. units
5. Diagrams for Overall sizes
5.1 Air cooled unit Structural diagram：
XRBF02ZB(Y)…XRBF07ZB(Y) XRBF09ZB(Y)…XRBF20ZB(Y)
XRBF01DB(Y)…XRBF06DB(Y) XRBF09DB(Y)…XRBF28DB(Y)
5.2 Water cooled unit structural diagram:
