浏览器自带分享功能也很好用哦~This series products feature box type structure with semi-hermetic compressor, that is compact and pleasant looking.They use U shape condensers and external fans, are applicable to cold display cases, cold storage rooms, ice producers etc.
1.Product description
This series products feature box type structure with semi-hermetic compressor, that is compact and pleasant looking.They use U shape condensers and external fans, are applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are:+5℃~+15℃, -5℃~+5℃ and -20℃~-15℃. They can be used in hotels, restaurants, medicines, agricultureral, chemicals industries all other place where cold storage is needed.
2.Main components
Compressor, oil heater, oil separator,vibration eliminator, filter,solenoid, pressure limitator, oil pressureprotector, gas separator, condenser, liquid receiver, sight glasses, pressure switch, H/L pressure gauge.
3.Model code
4.Specifications
4.1 R22 units

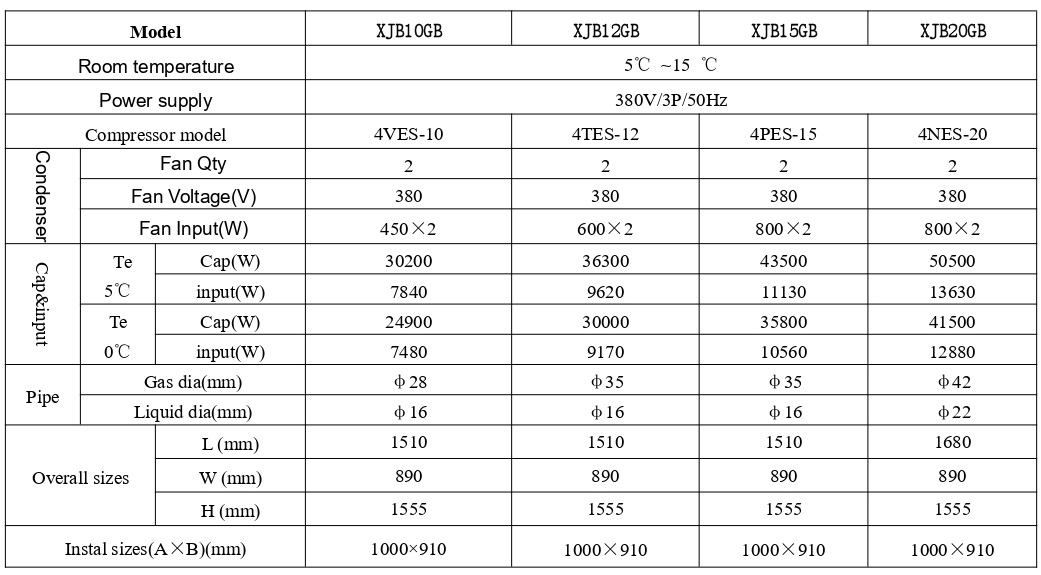

4.1.1 High temperature series. The capacity test condition is: Ambient temperature 32℃, over heat 10K；

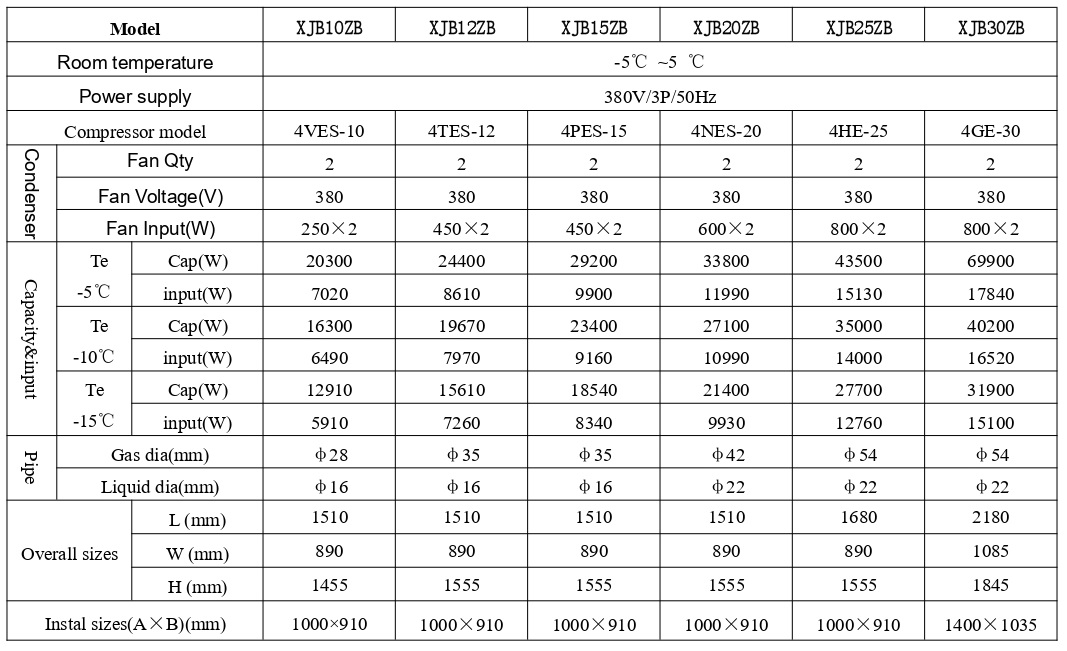

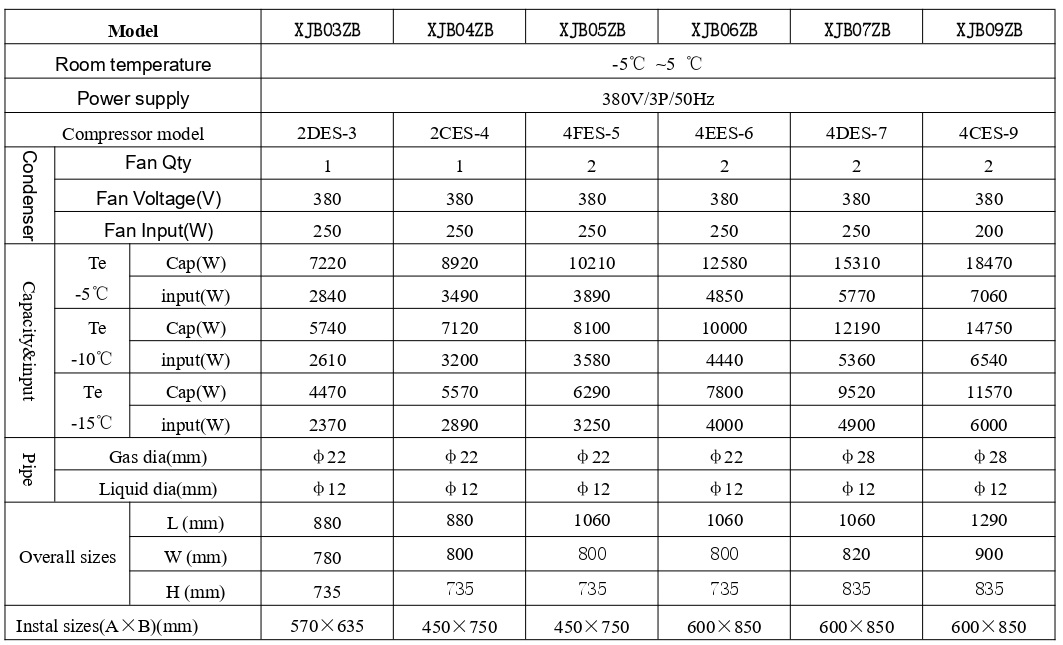

4.1.2 Mid temperature series. The capacity test condition is: Ambient temperature 32℃, over heat 10K；

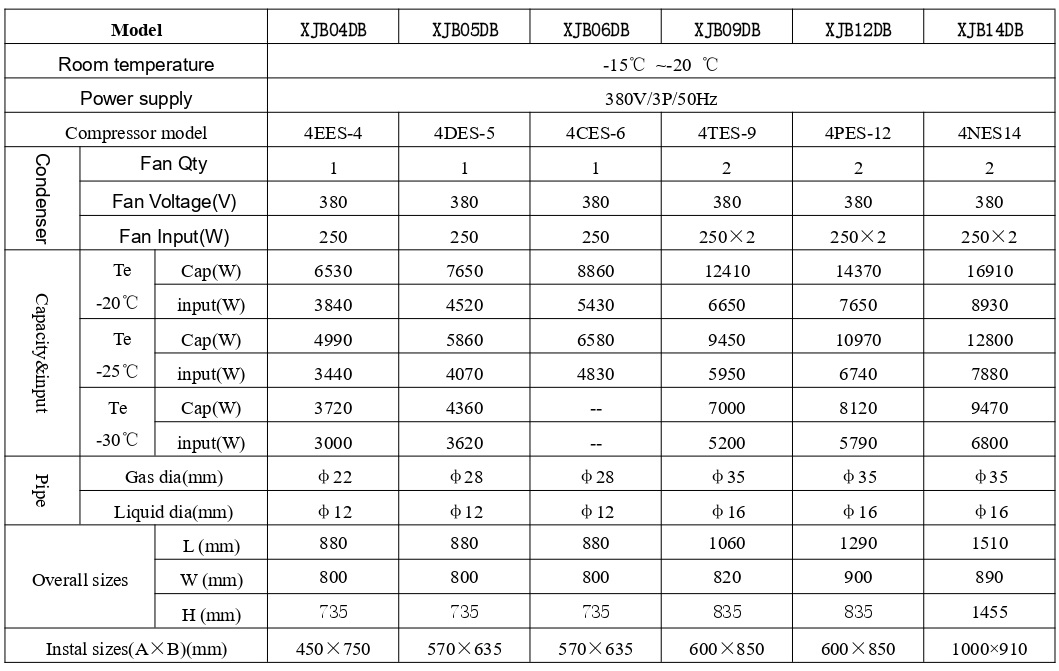

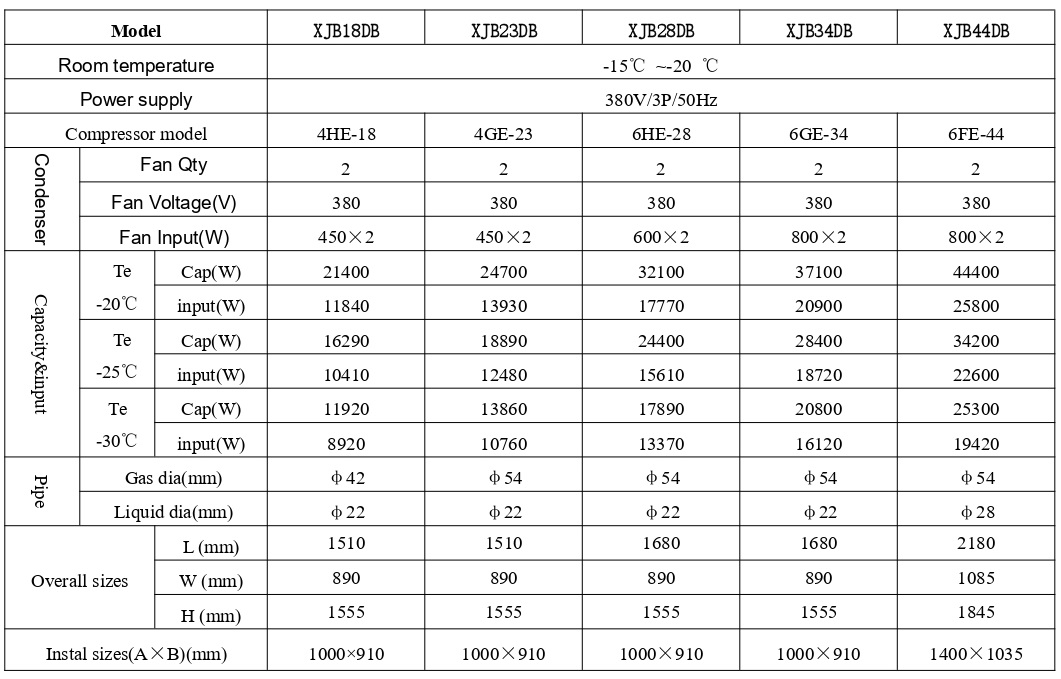

4.1.3 Low temperature series. The capacity test condition is: Ambient temperature 32℃, over heat 10K；The CIC will be necessary in case the evaporting temperature is below -23℃.
4.2 R404a units

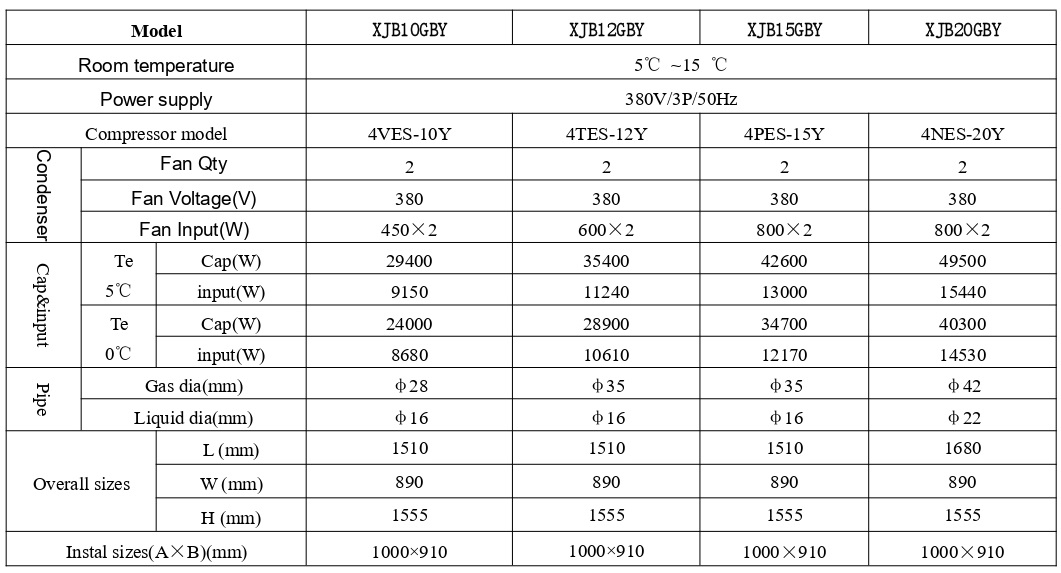

4.2.1 High temperature series. The capacity test condition is: Ambient temperature 32℃, over heat 10K；

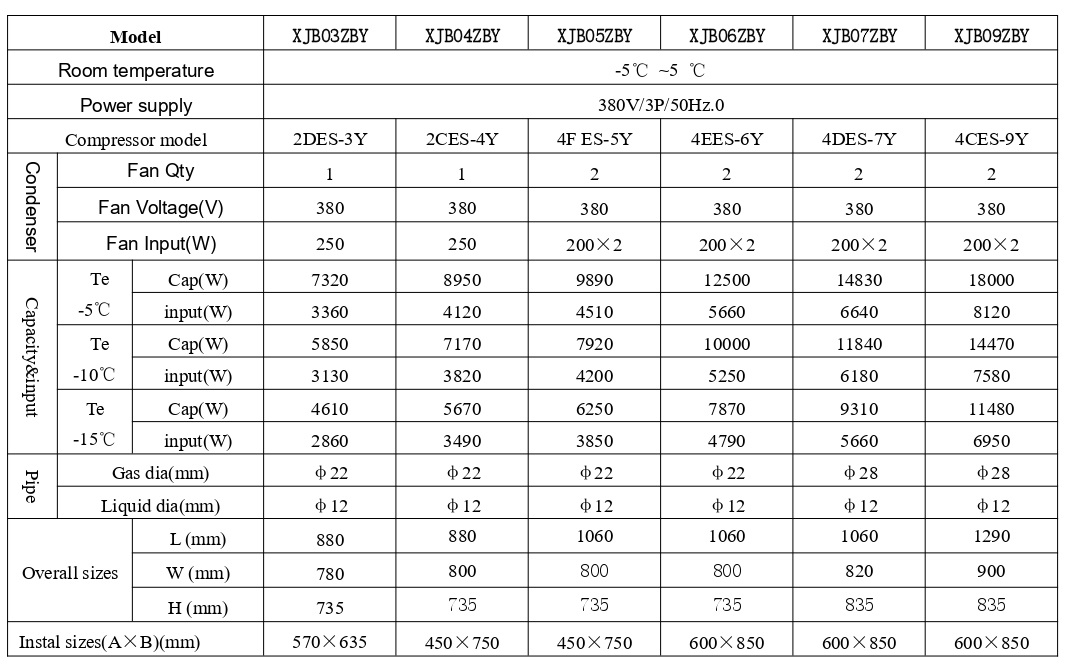

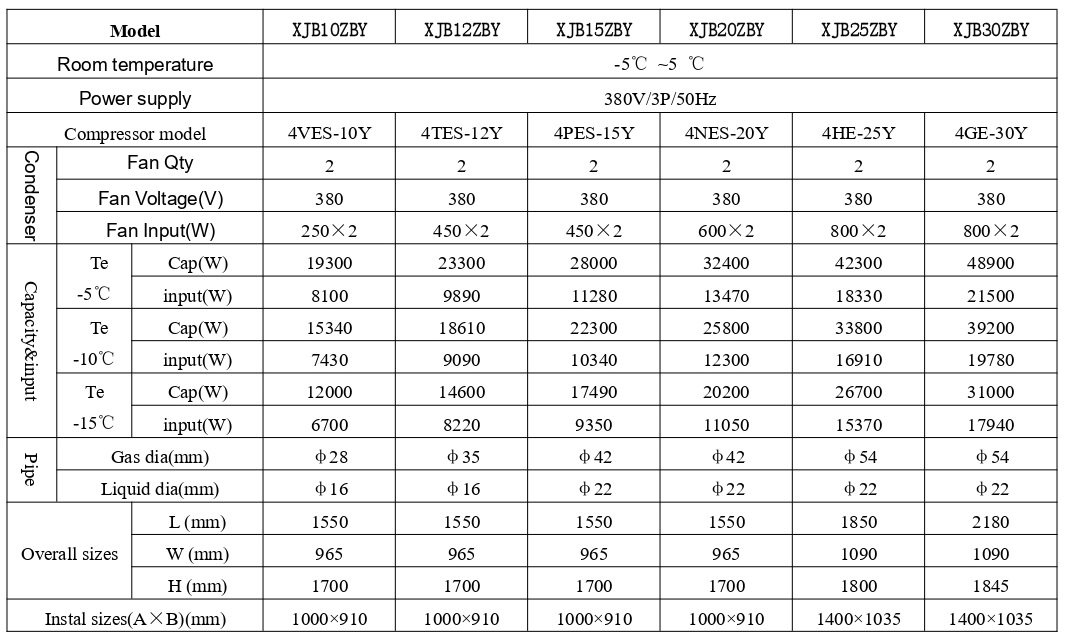

4.2.2 Mid temperature series. The capacity test condition is: Ambient temperature 32℃, over heat 10K；

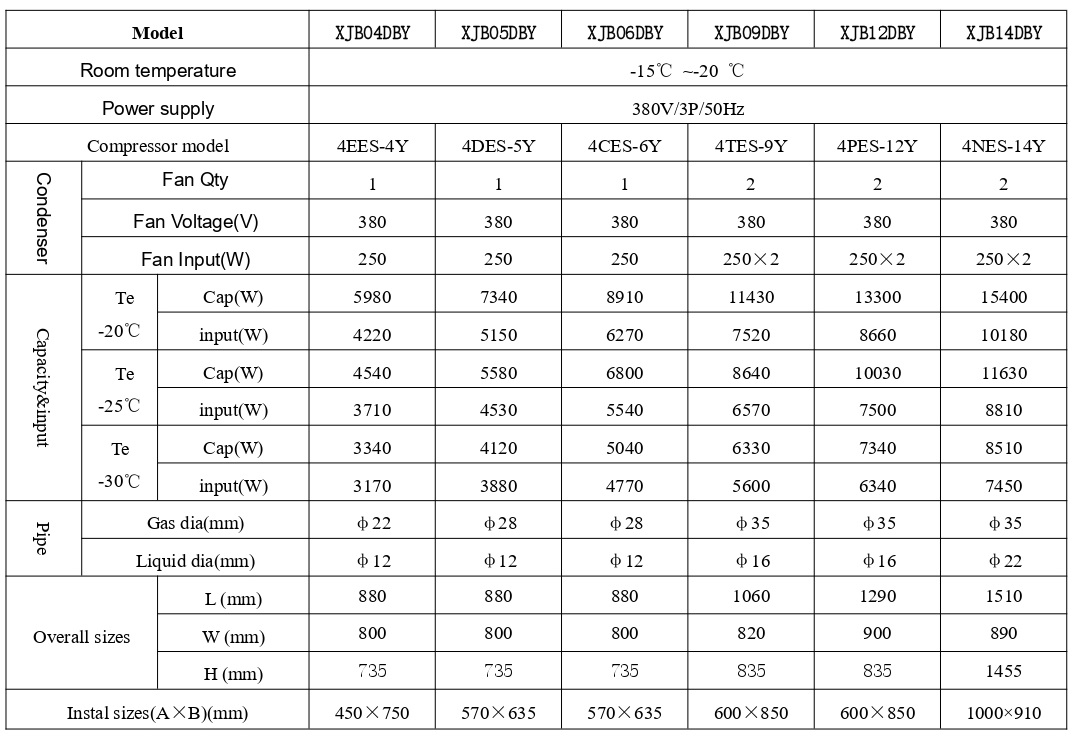

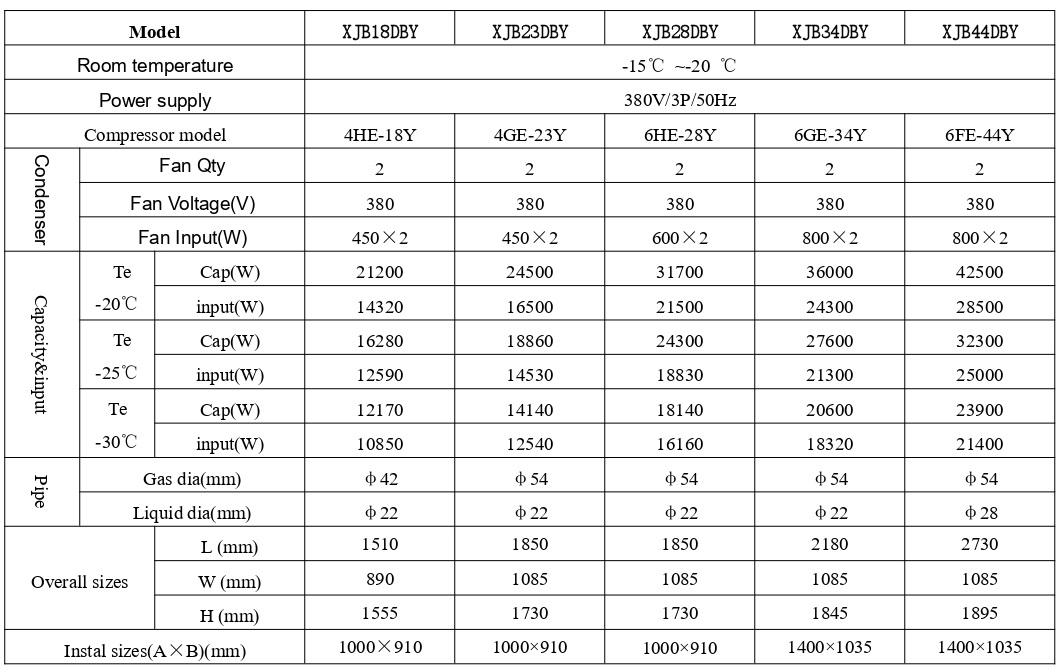

4.2.3 Low temperature series. The capacity test condition is: Ambient temperature 32℃, over heat 10K；

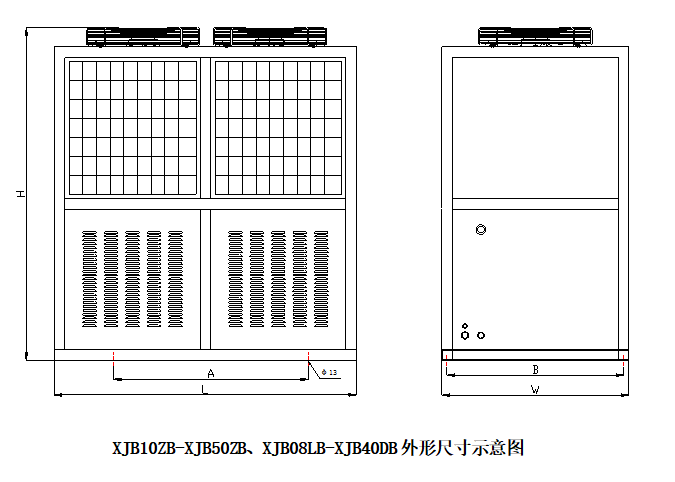

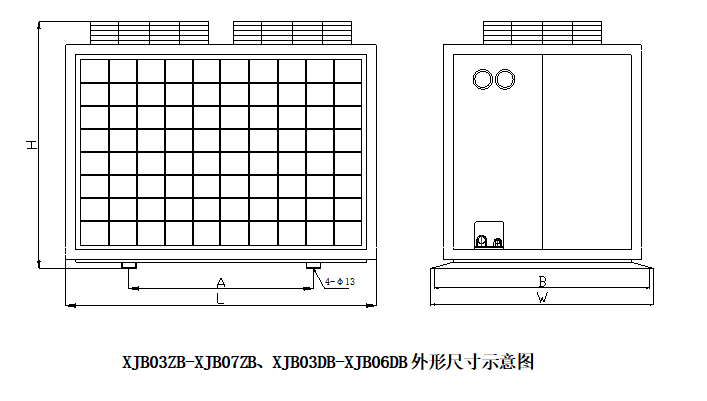

5.Diagrams for Overall sizes
