浏览器自带分享功能也很好用哦~This series products feature box type structure, that is compact and pleasant looking,applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5℃~ 5℃and -20℃~-15℃. Theycan be usedin hotels,restaurants, medicines, agricutureral, chemicals industries all other place where cold storage is needed.
1. Product description
This series products feature box type structure, that is compact and pleasant looking,applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5℃~ 5℃and -20℃~-15℃. Theycan be usedin hotels,restaurants, medicines, agricutureral, chemicals industries all other place where cold storage is needed.
2. Main components
World famous brand refrigeration parts are employed for all products:
fans with 6 pole external rotor motors;
For the units with 2 fans, the condenser fans are automatically controlled.
Protection devices for phase sequence, over loading ,sub-heating ,lack of phase , high & low pressure etc.
3. Model code
4. Specifications

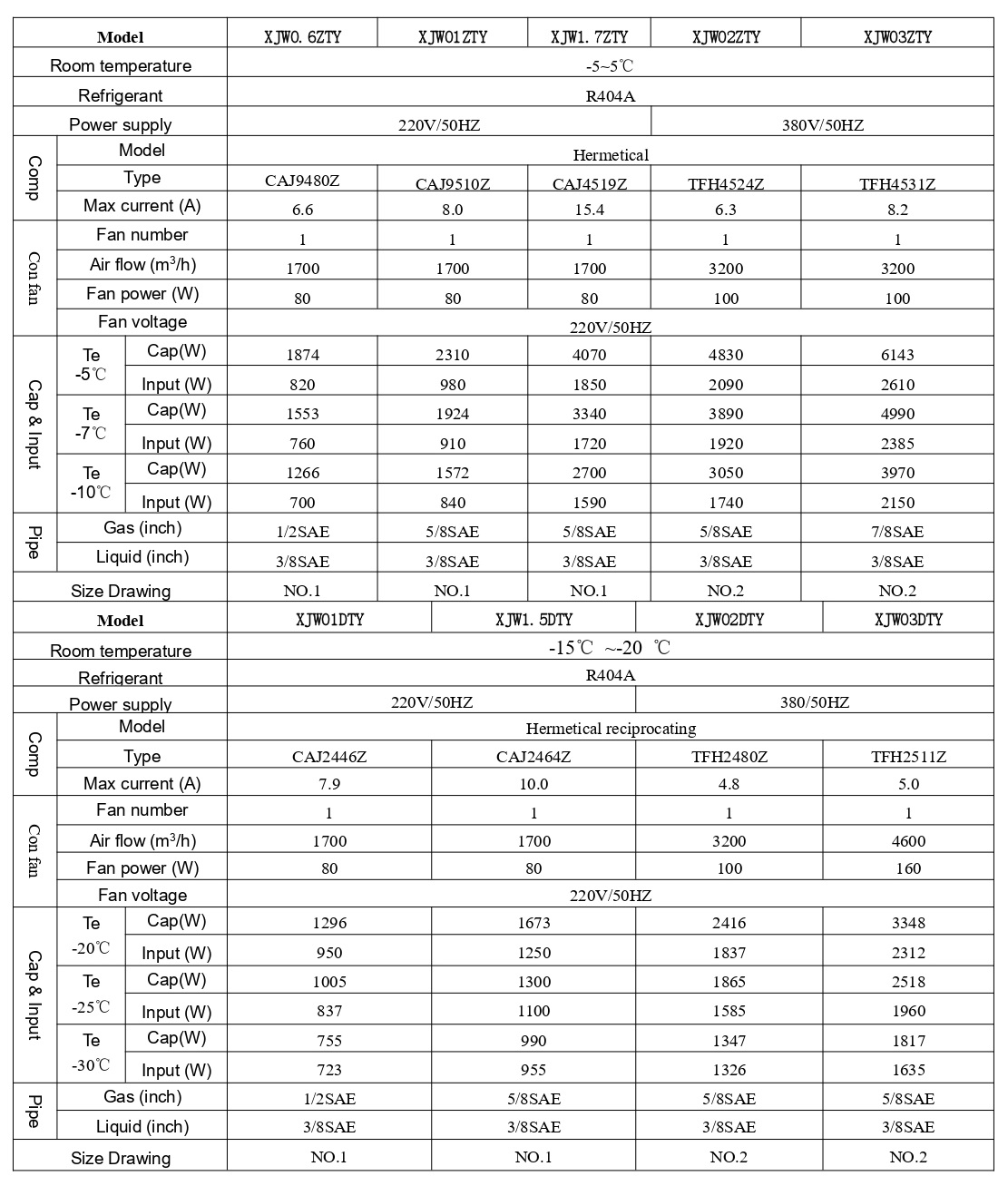

4.1 Units with TECUMSEH COMPRESSOR,R404A; condensing Temperature for test: 45℃

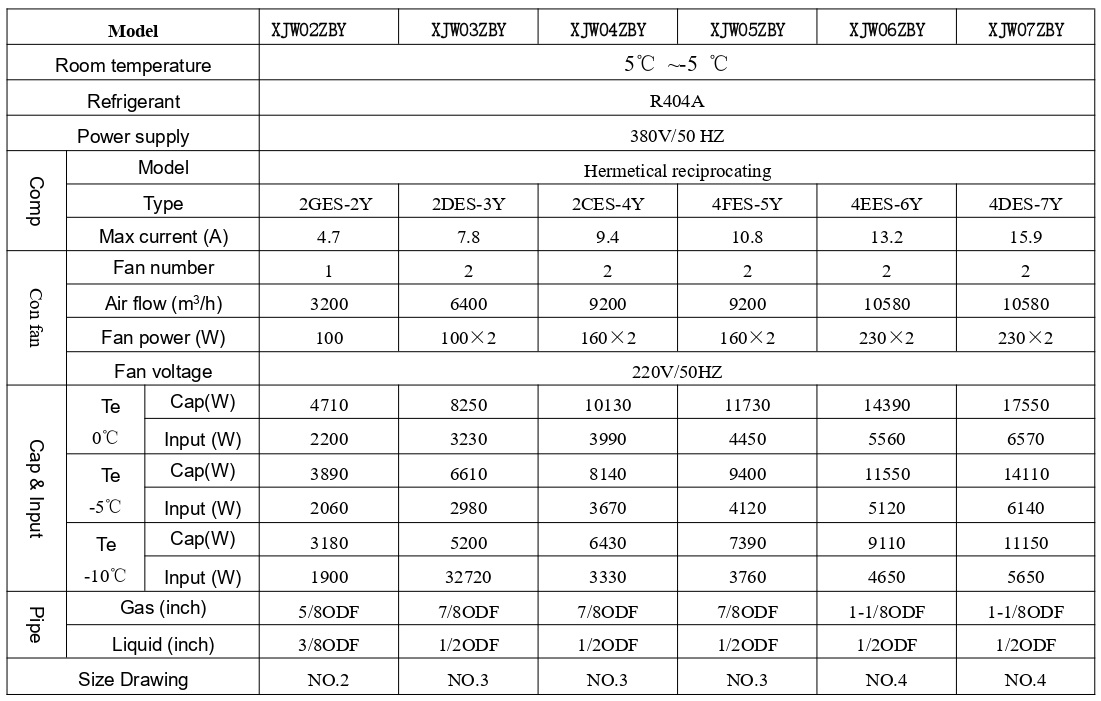

4.2 Units with CopelandZBCOMPRESSOR,R404A; condensing Temperature for test: 45℃

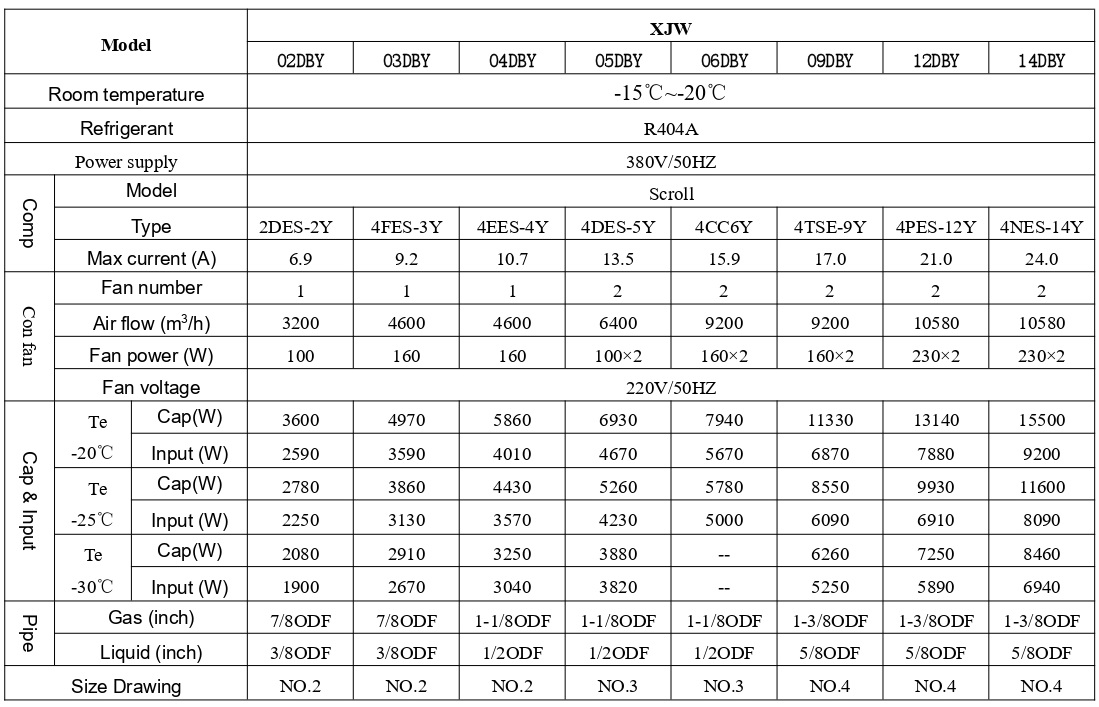

4.3 Units with Bitzer Semi hermetical COMPRESSOR,R404A; condensing Temperature for test: 50℃

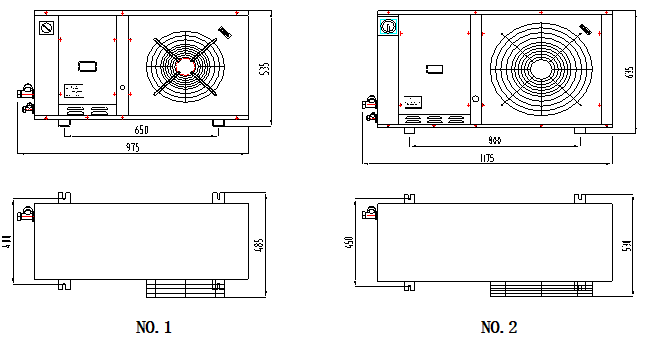

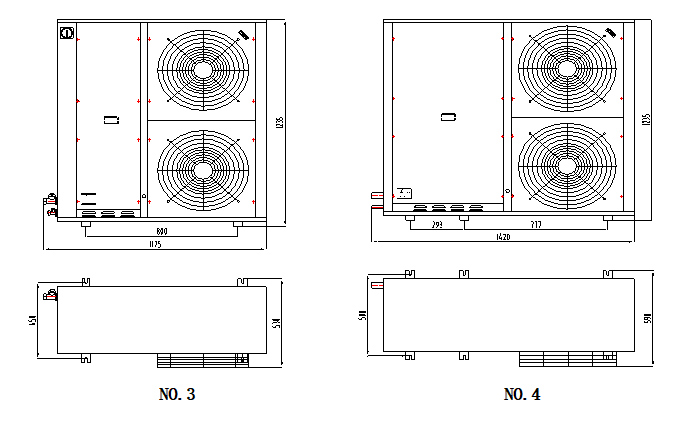

四、 product outline size diagram
