浏览器自带分享功能也很好用哦~D series air cooler is a kind of cooling and cooling equipment used in various cold storages, which is matched with Freon refrigeration unit. According to the applicable temperature, it is divided into three series: DL, DD and DJ. DL type air coolers are mainly suitable for fresh-keeping warehouses around 0°C; DD type air coolers are mainly suitable for refrigerators around -18°C; DJ type air coolers are mainly suitable for quick-freezing warehouses below -25°C.
1. Product description
D series air cooler is a kind of cooling and cooling equipment used in various cold storages, which is matched with Freon refrigeration unit. According to the applicable temperature, it is divided into three series: DL, DD and DJ. DL type air coolers are mainly suitable for fresh-keeping warehouses around 0°C; DD type air coolers are mainly suitable for refrigerators around -18°C; DJ type air coolers are mainly suitable for quick-freezing warehouses below -25°C.
This series of products has the following characteristics:
The shell is made of high-quality steel plate, and the surface is sprayed with plastic, corrosion-resistant and beautiful in appearance;
The coils are arranged in a staggered way, using mechanical expansion to make the copper tube and the aluminum sheet tightly bonded, and the heat exchange effect is good;
The high-quality stainless steel electric heating tubes are evenly distributed in the coil, and the defrosting effect is good;
Double water pan structure is adopted, which can effectively prevent the water pan from freezing.
Long-distance air ducts can be used according to customer requirements;
2. Model Code:
3. Main technical parameters:

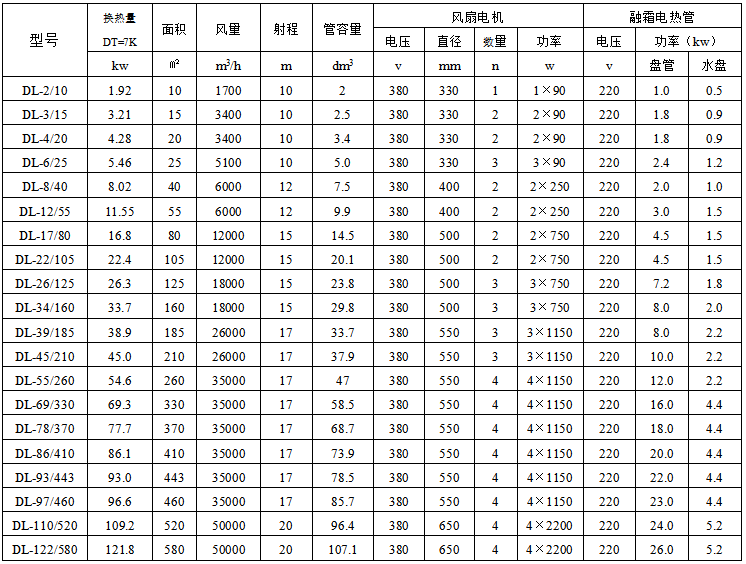

1. DL type air cooler (pitch 4.5mm)

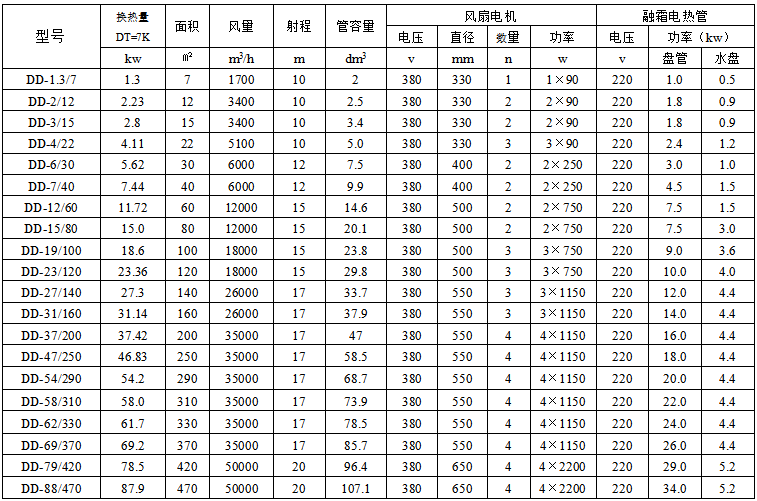

2. DD type air cooler (6.0mm spacing)

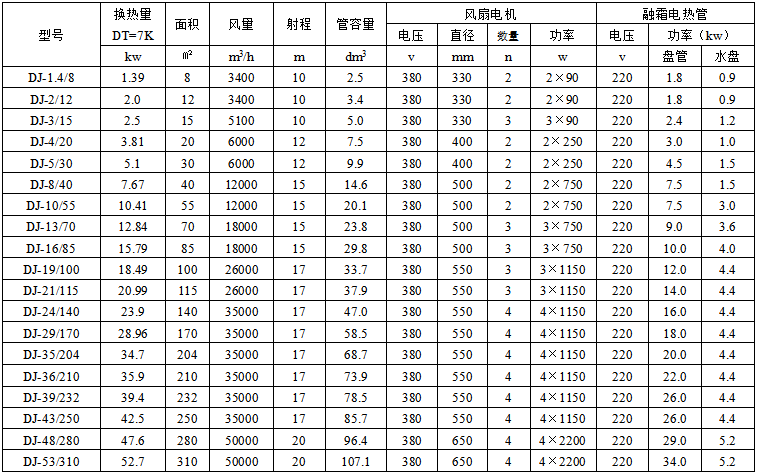

3. DJ type air cooler (piece distance 9.0mm)

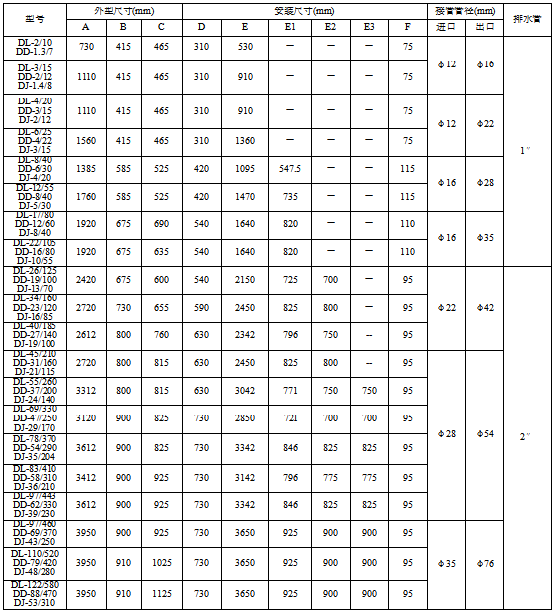

4. Dimensions and installation dimensions:
D series air cooler is a kind of cooling and cooling equipment used in various cold storages, which is matched with Freon refrigeration unit. According to the applicable temperature, it is divided into three series: DL, DD and DJ. DL type air coolers are mainly suitable for fresh-keeping warehouses around 0°C; DD type air coolers are mainly suitable for refrigerators around -18°C; DJ type air coolers are mainly suitable for quick-freezing warehouses below -25°C.
1. Product description
D series air cooler is a kind of cooling and cooling equipment used in various cold storages, which is matched with Freon refrigeration unit. According to the applicable temperature, it is divided into three series: DL, DD and DJ. DL type air coolers are mainly suitable for fresh-keeping warehouses around 0°C; DD type air coolers are mainly suitable for refrigerators around -18°C; DJ type air coolers are mainly suitable for quick-freezing warehouses below -25°C.
This series of products has the following characteristics:
The shell is made of high-quality steel plate, and the surface is sprayed with plastic, corrosion-resistant and beautiful in appearance;
The coils are arranged in a staggered way, using mechanical expansion to make the copper tube and the aluminum sheet tightly bonded, and the heat exchange effect is good;
The high-quality stainless steel electric heating tubes are evenly distributed in the coil, and the defrosting effect is good;
Double water pan structure is adopted, which can effectively prevent the water pan from freezing.
Long-distance air ducts can be used according to customer requirements;
2. Model Code:
3. Main technical parameters:
1. DL type air cooler (pitch 4.5mm)
2. DD type air cooler (6.0mm spacing)
3. DJ type air cooler (piece distance 9.0mm)
4. Dimensions and installation dimensions:
