浏览器自带分享功能也很好用哦~●The freezing capacity is large. Due to the double drum structure, the characteristics of the screw-type quick-freezer are brought into full play;
●Compact structure and small footprint;
●A large number of machined parts are used to eliminate welding deformation caused by welding parts, accumulated transmission deviation and transmission inconsistency caused by welding stress concentration;
●The conveyor mesh belt has strong elongation resistance and high wear resistance, thereby improving the service life and stability of the equipment;
●The equipment is equipped with a self-checking device for the operation of the mesh belt
Spiral quick-freezing equipment is a high-efficiency, energy-saving, small-footprint and large-capacity freezing equipment. The freezing output can reach 200kg/h ~ 10000kg/h. The equipment is designed and manufactured in accordance with HACCP requirements, ensuring food safety and hygiene. The client requested a specific design.
Spiral quick-freezing machine is a kind of energy-saving quick-freezing equipment with compact structure, wide application area, small footprint and large freezing capacity. The first choice model for high material temperature.
Scope of application: prepared food, ice cream, pastry, meat and poultry, aquatic products, fried food, small packaged food, etc.
1. The freezing capacity is large. Due to the double drum structure, the characteristics of the spiral quick freezer are brought into full play;
2. Compact structure and small footprint;
3. A large number of machined parts are used to eliminate the welding deformation caused by welding parts, the accumulated deviation of transmission caused by welding stress concentration, and the inconsistency of transmission;
4. The conveyor mesh belt has strong elongation resistance and high wear resistance, thereby improving the service life and stability of the equipment;
5. The equipment is equipped with a self-checking device for the operation of the mesh belt, which can monitor the operation of the mesh belt at any time, eliminating unnecessary losses caused by the poor operation of the mesh belt.

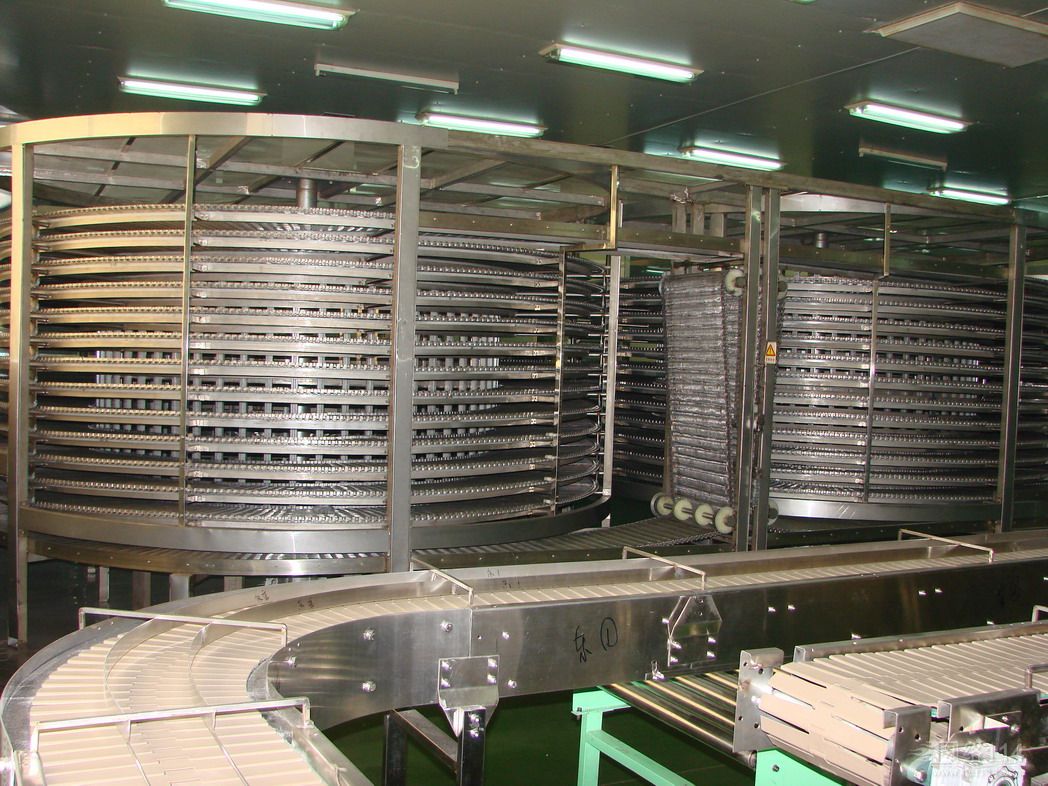

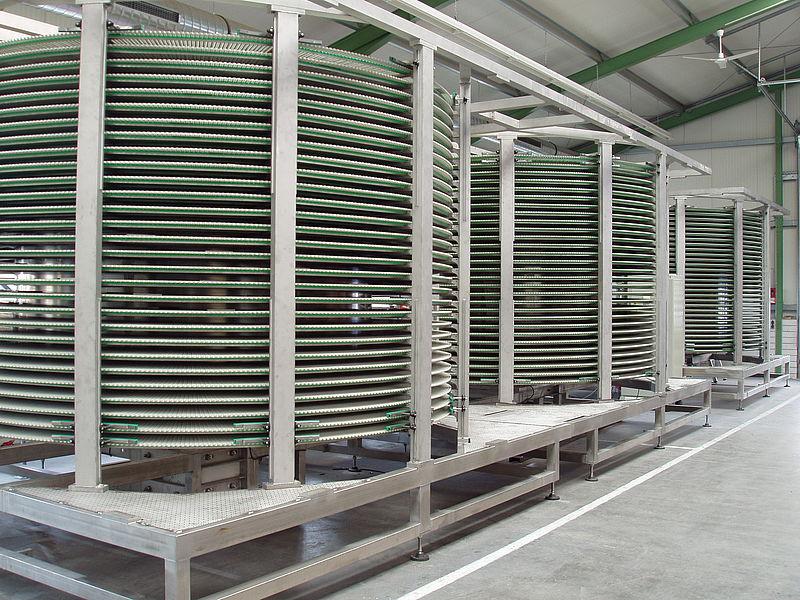

Spiral Freezing Tunnel

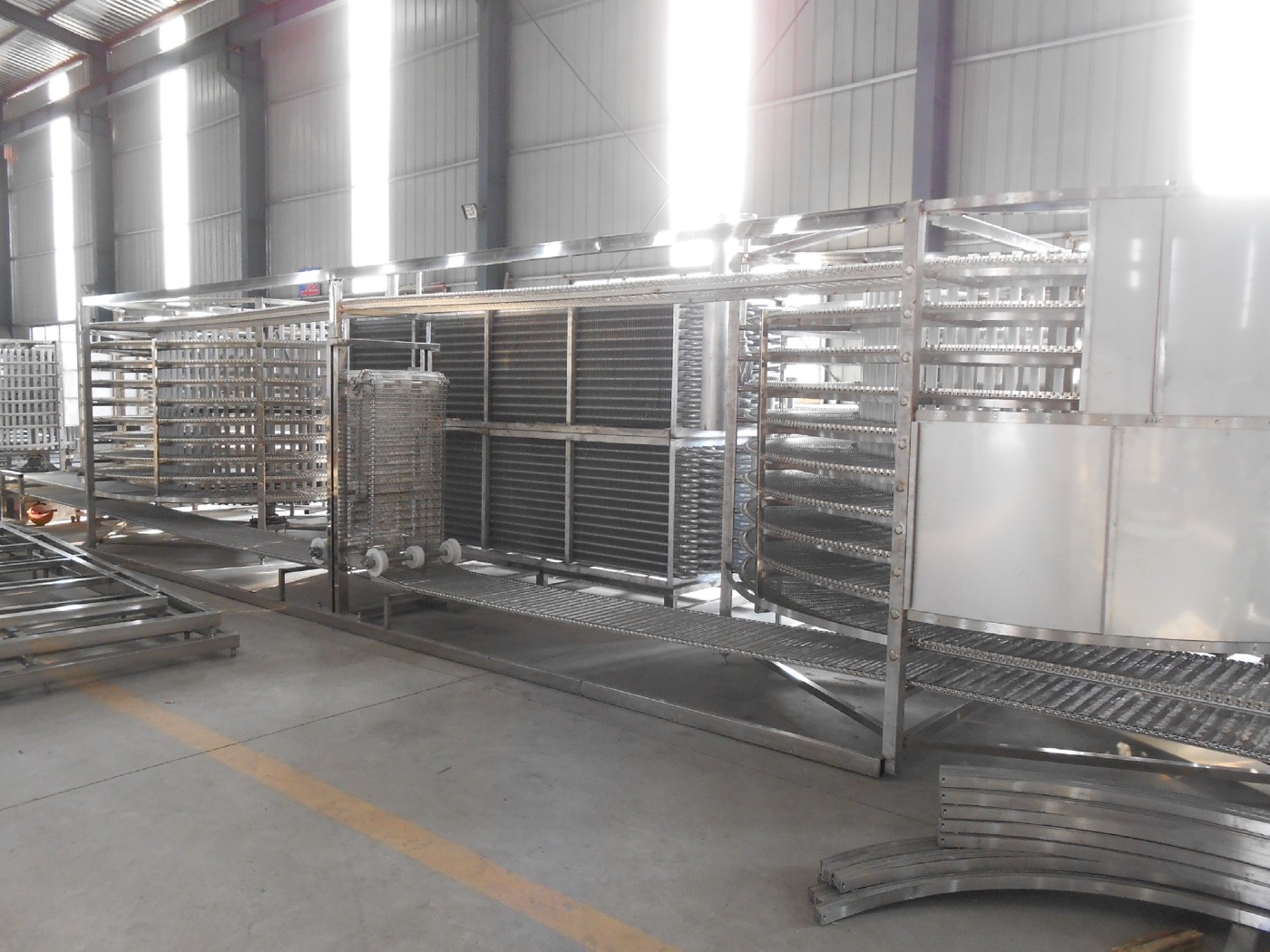

Overall structure

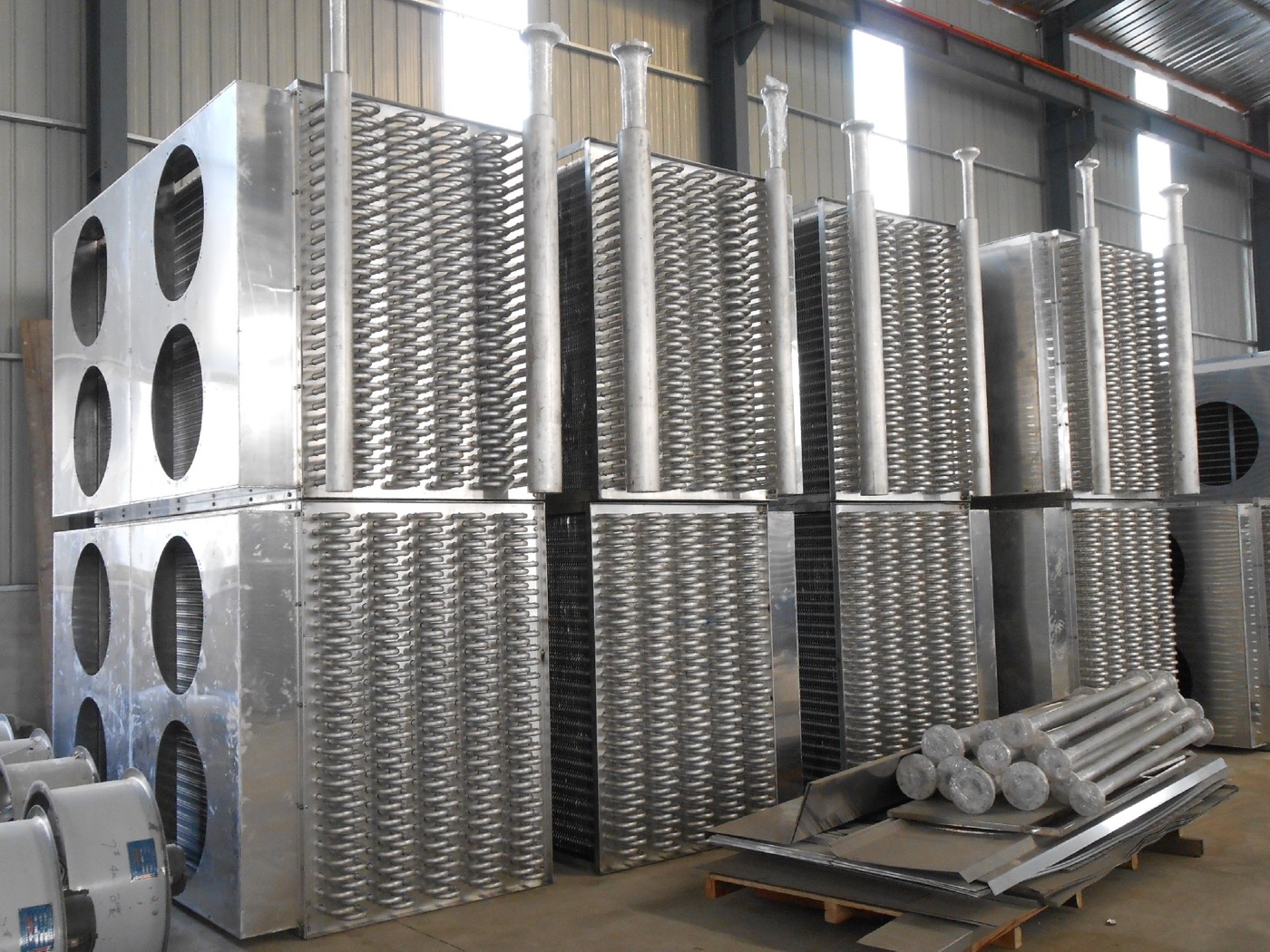

Evaporator

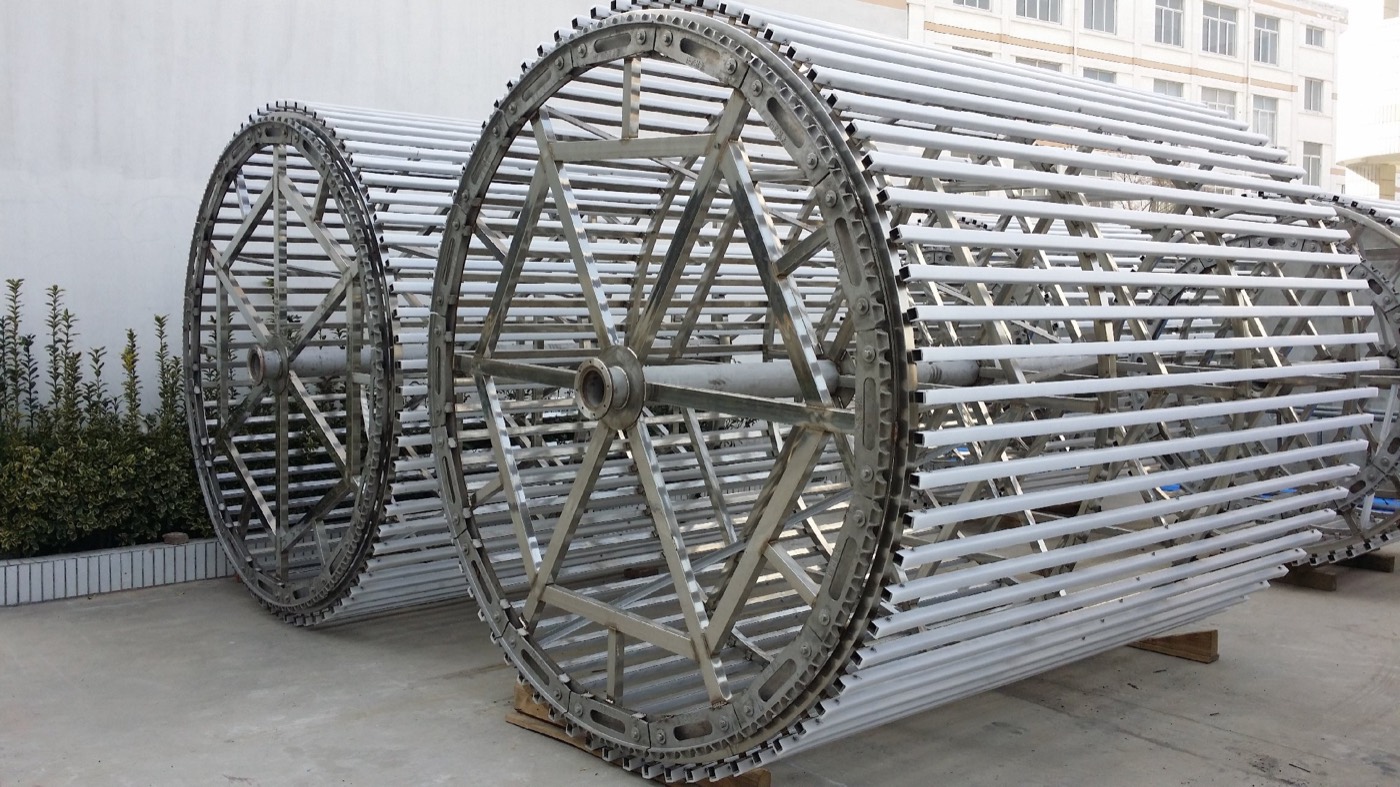

Cage Internal structure

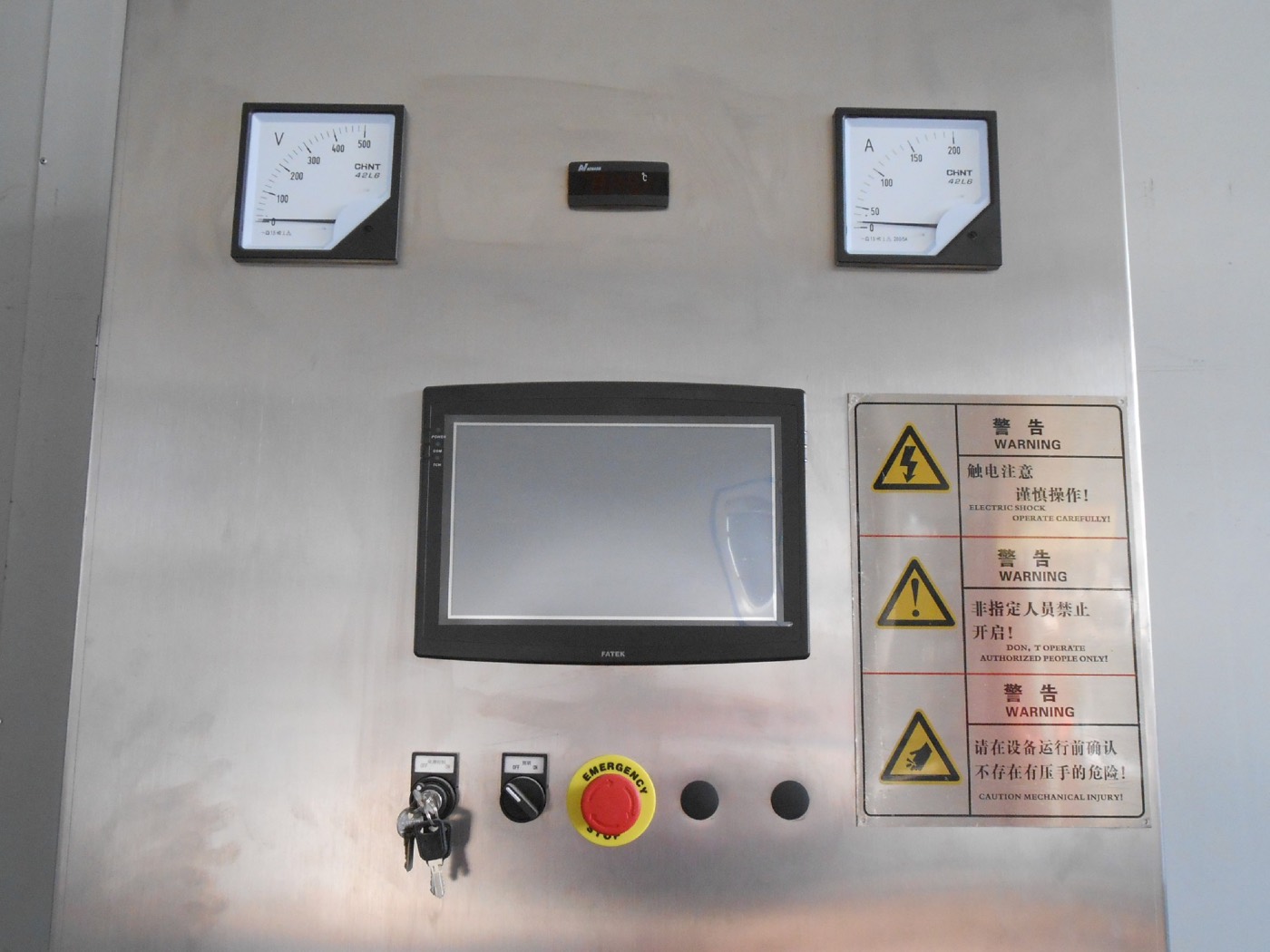

Electric control cabinet

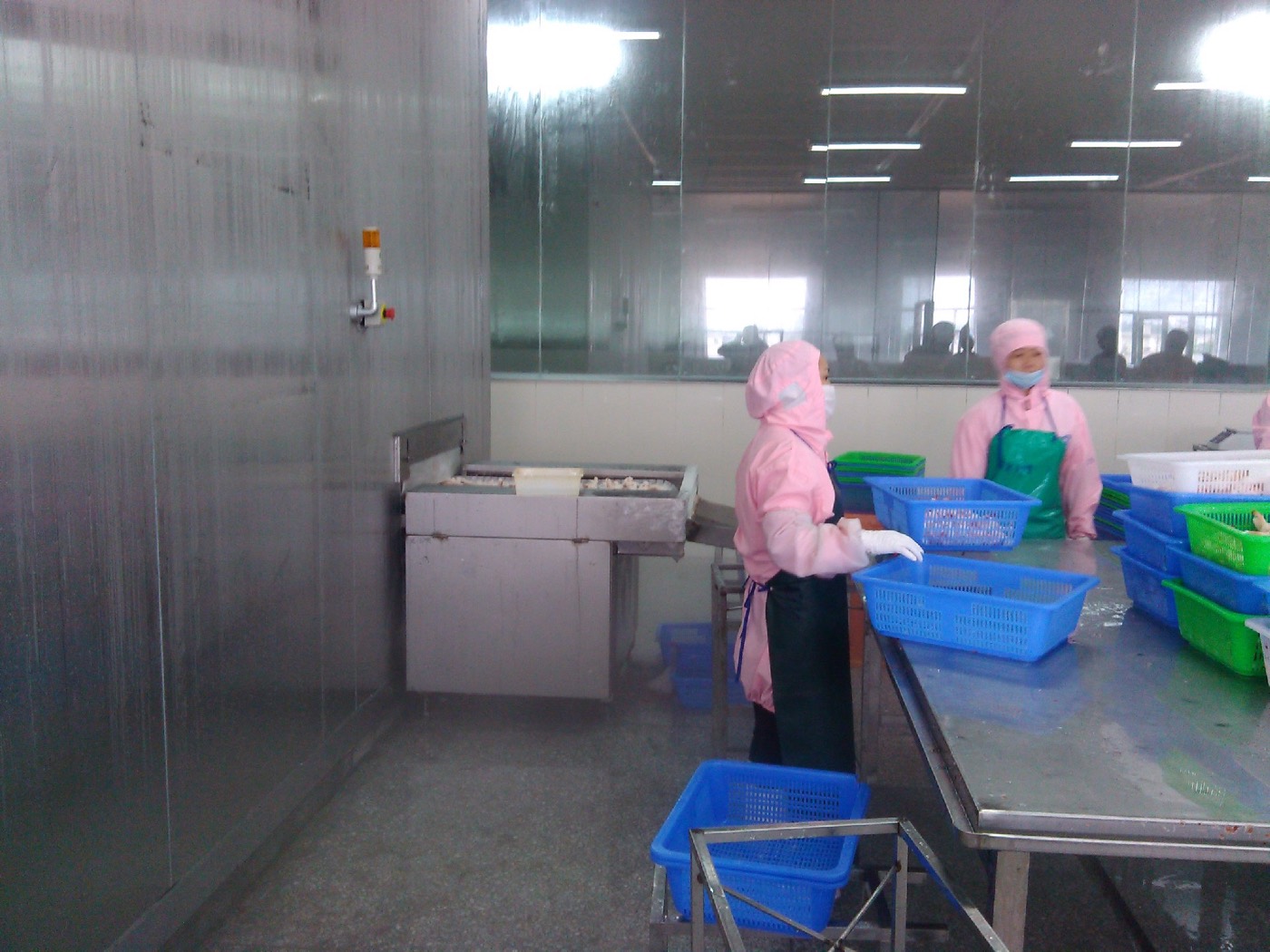

Workshop Frozen Shrimp
StructureEditing
Spiral quick freezer is mainly composed of transmission part, evaporator, storage board and electrical device
The transmission part consists of transmission motor, mesh belt, turret and independent frequency converter;
The evaporator is composed of stainless steel and aluminum fins, which are arranged with variable fin spacing to ensure smooth air circulation. The evaporation pipes can be aluminum pipes and copper pipes;
The library board is made of stainless steel;
The electrical system consists of stainless steel electric box and intelligent control device;
Technical Specifications Features:
1. The insulation storage body is double-sided SUS304 stainless steel polyurethane storage board, and the access door is equipped with a double-layer sealing device and a heating device to prevent freezing.
2. The conveyor mesh belt is made of high-strength SUS304 stainless steel mesh, and there are baffles on both sides to ensure that the food is not easy to fall, and it is safer to use, and the frozen products will not leave traces directly on the surface of the mesh belt.
3. The air deflector in the warehouse adopts the circular symmetrical air supply method, which makes the airflow organization smooth, the wind field is uniform, and the heat exchange effect of the frozen product is enhanced.

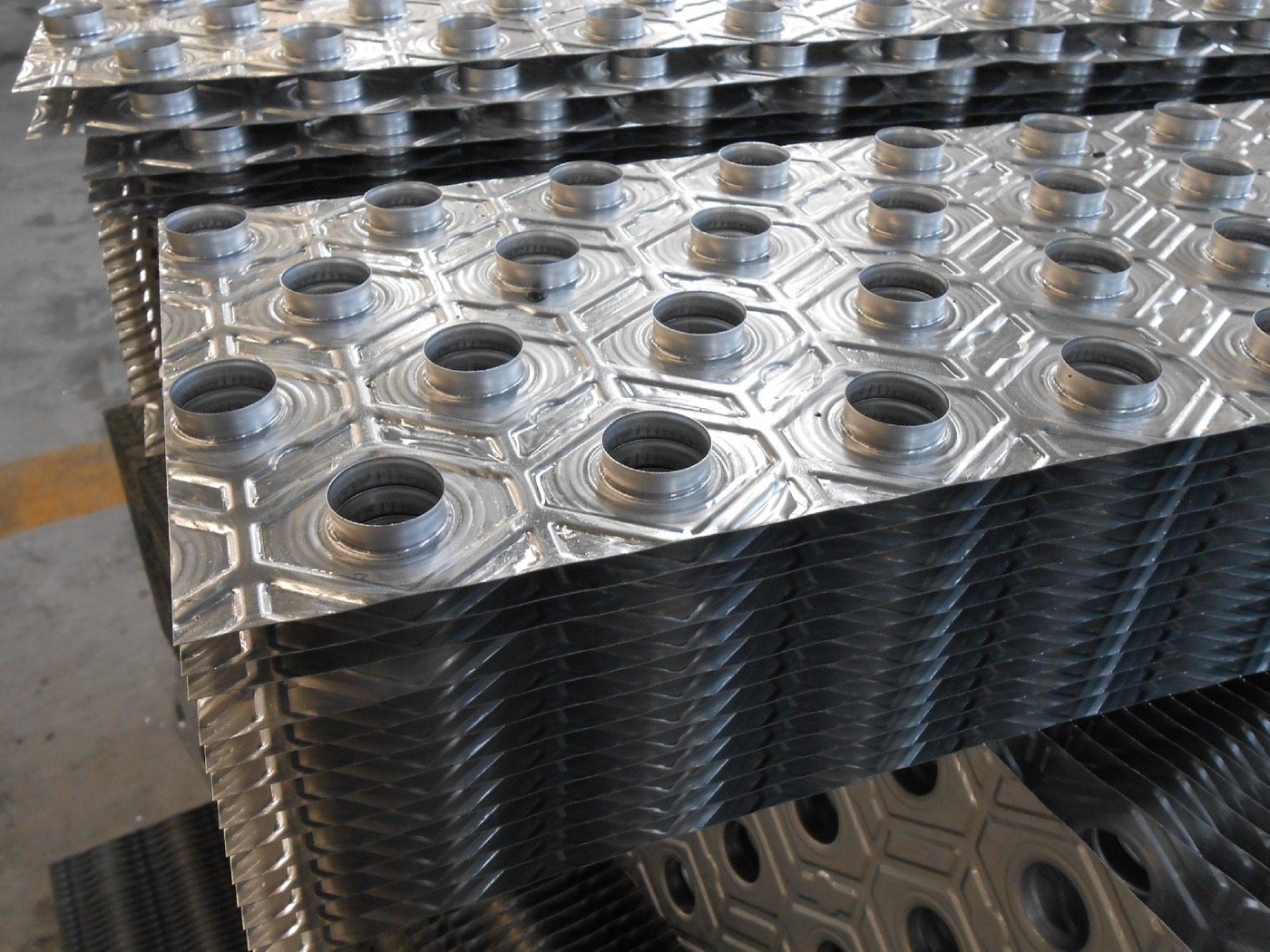

4. The evaporator is made of aluminum alloy material, aluminum tube and aluminum fin, which is easy to clean. The design of variable plate distance can effectively prevent frost blocking and prolong the frost flushing time. The unique liquid supply method makes the heat exchange more sufficient and the effect is more obvious.
5. Stainless steel electric control box, stable quality, safe and reliable, easy to operate. The control system is equipped with special alarm devices and emergency buttons to ensure the safe operation of the equipment.
