The series of industrial chillers produced by our company can provide industrial refrigeration medium (water or ethylene glycol aqueous solution) at about 7℃ and -15℃ or even lower temperature, which can be used in textile, chemical industry, machinery, medicine, hygiene , food, electronics and other industries.

◆ Adopt international brand refrigeration compressor, which has the characteristics of high efficiency, low noise, small vibration and good reliability;

◆ The refrigeration components and control components of the unit are made of high-quality brand products, which make the unit run more reliable and safer;

◆ Adopt high-efficiency shell-and-tube type or high-efficiency copper tube aluminum sheet type condenser, with good heat exchange effect.

◆ Adopt intelligent control to ensure that the unit operates automatically according to the requirements, which improves the reliability of control;

◆ The unit has temperature display, setting and various protections such as high and low pressure, phase loss, overload and water cut off.

2. Model description:

3. the main technical parameters:

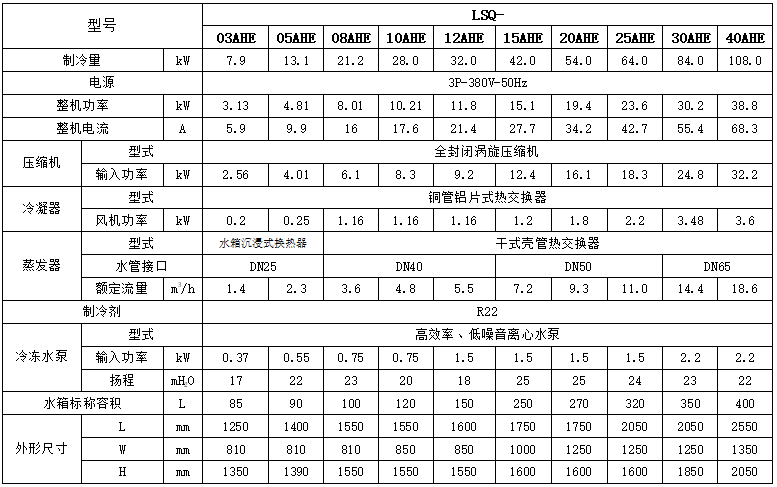

1. Fully enclosed air-cooled chiller

Calibration conditions: chilled water inlet temperature 12°C, outlet water temperature 7°C, ambient temperature 35°C;

Calibration conditions: freezing medium (ethylene glycol aqueous solution) inlet water temperature -11°C, outlet water temperature -15°C, ambient temperature 35°C;

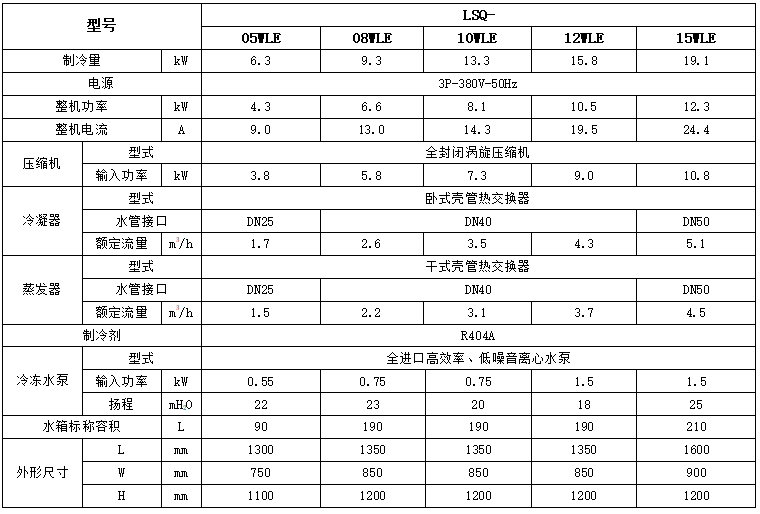

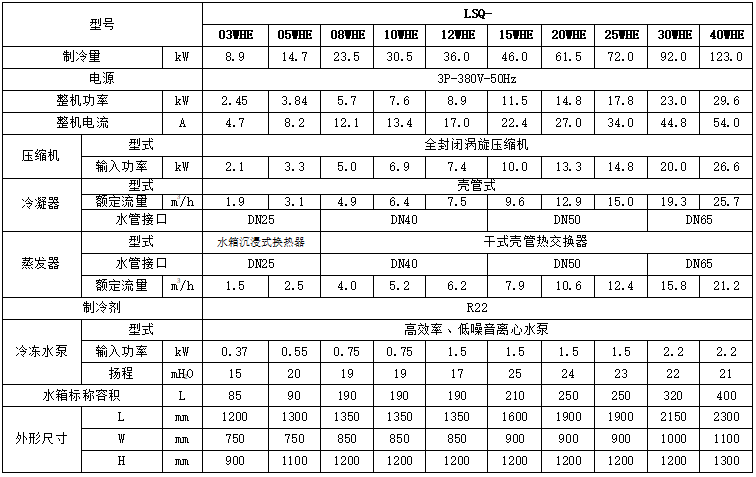

2. Fully enclosed water-cooled chiller

Calibration conditions: the inlet temperature of chilled water is 12°C, the outlet temperature is 7°C, and the inlet temperature of cooling water is 30°C;

Calibration conditions: the inlet water temperature of the freezing medium (ethylene glycol aqueous solution) is -11°C, the outlet water temperature is -15°C, and the cooling inlet water temperature is 30°C

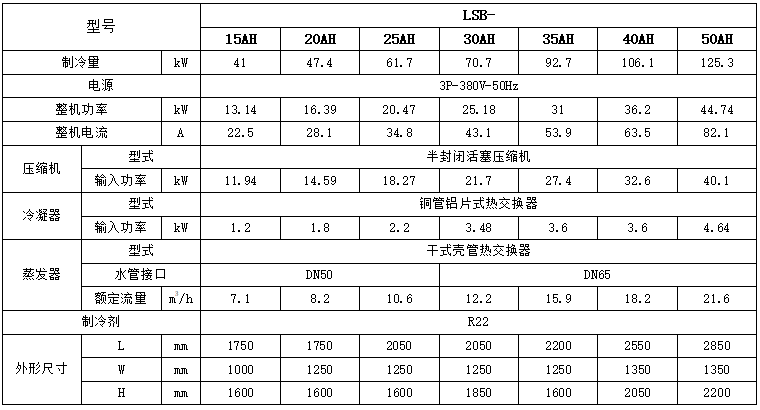

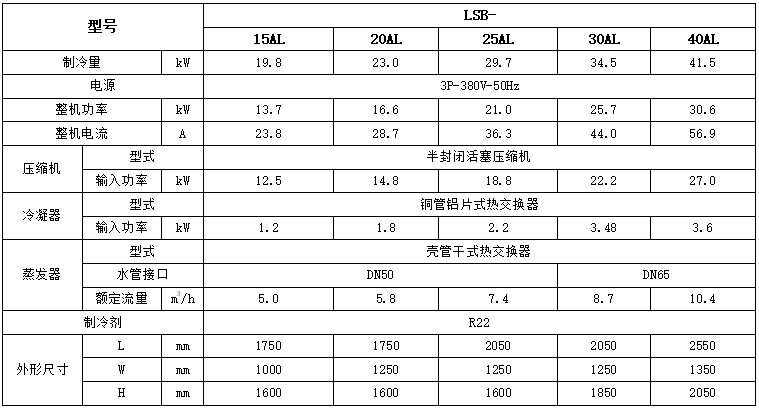

3. Semi-closed air-cooled chiller

Calibration conditions: chilled water inlet temperature 12°C, outlet water temperature 7°C, ambient temperature 35°C;

Refrigeration conditions: refrigerating medium (ethylene glycol aqueous solution) inlet water temperature -11°C, outlet water temperature -15°C, ambient temperature 35°C;

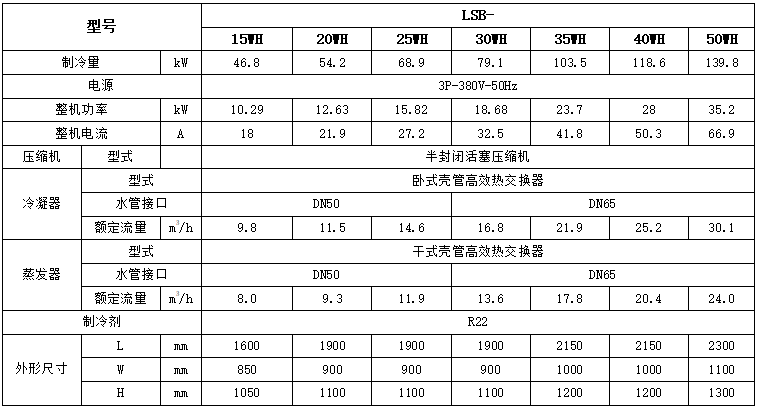

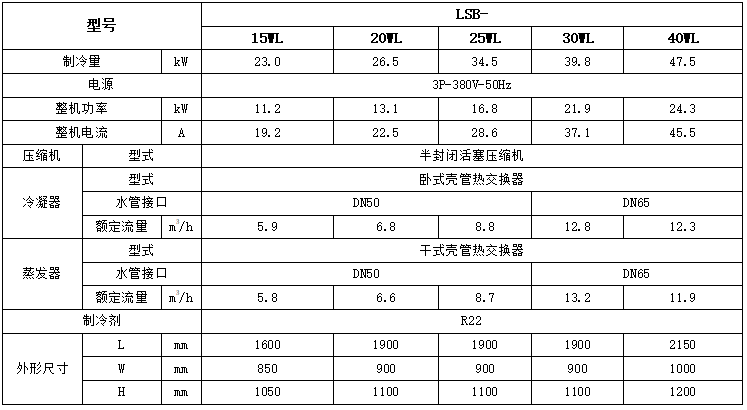

4. Semi-closed water-cooled chiller

Calibration conditions: the inlet temperature of chilled water is 12°C, the outlet temperature is 7°C, the inlet temperature of cooling water is 30°C, and the outlet temperature is 35°C;

Refrigeration conditions: ethylene glycol inlet temperature -11°C, outlet water temperature -15°C, cooling water inlet temperature 30°C;

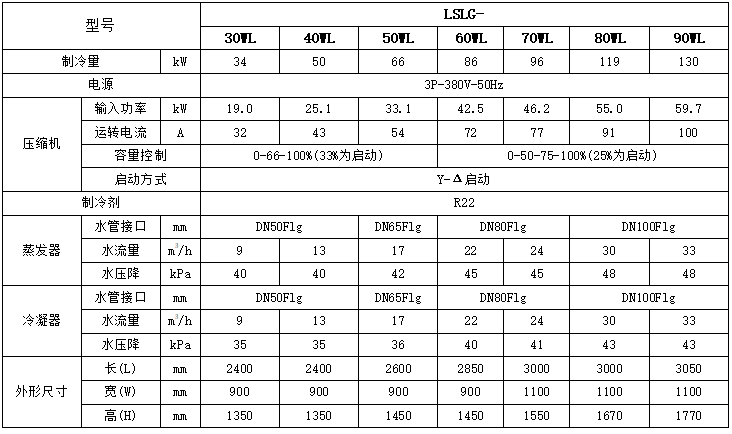

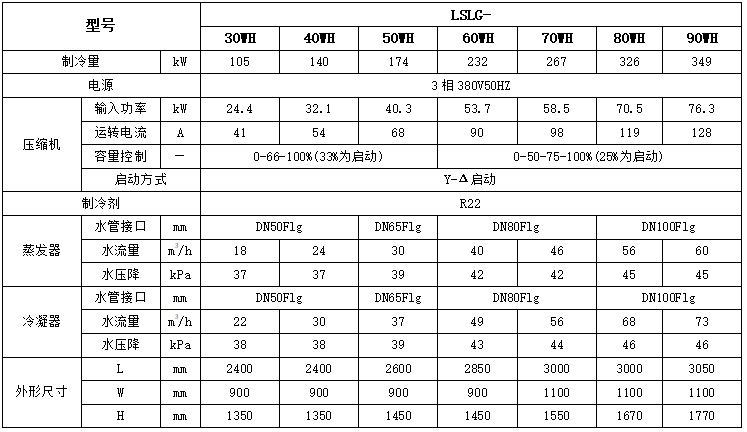

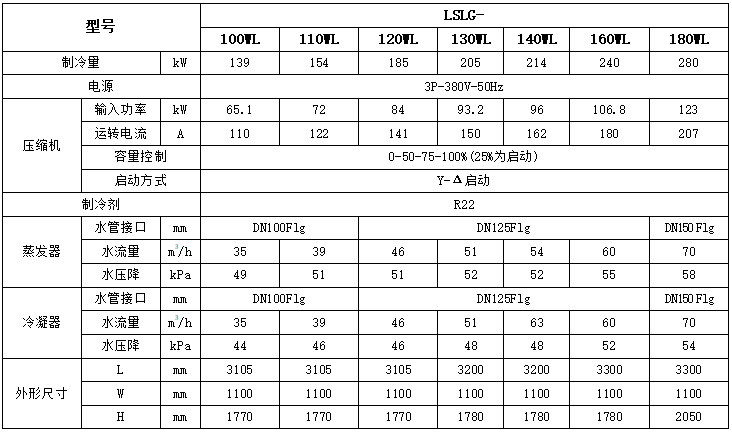

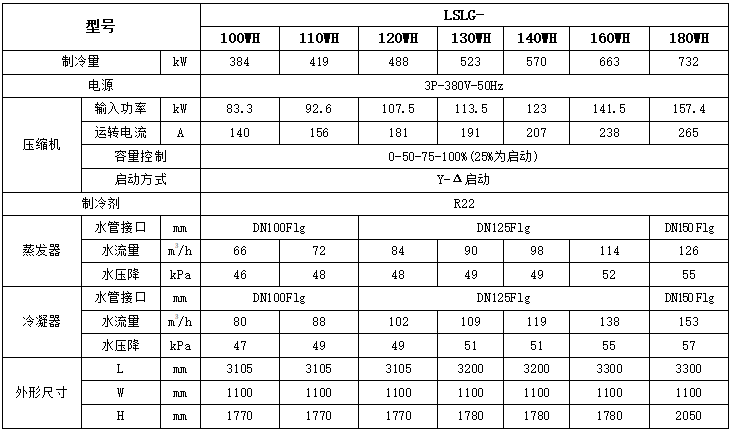

5. Water-cooled screw chiller

Calibration conditions: the inlet temperature of chilled water is 12°C, the outlet temperature is 7°C; the inlet temperature of cooling water is 30°C;

Calibration conditions: the inlet temperature of chilled water is 12°C, the outlet temperature is 7°C; the inlet temperature of cooling water is 30°C;

Calibration conditions: the inlet water temperature of the freezing medium (ethylene glycol aqueous solution) is -11°C, the outlet water temperature is -15°C; the cooling water inlet temperature is 30°C;

Calibration conditions: the inlet water temperature of the freezing medium (ethylene glycol aqueous solution) is -11°C, the outlet water temperature is -15°C; the cooling water inlet temperature is 30°C;

4. the outline diagram of the chiller:

1) LSQ(B)××A××series air-cooled chiller< br />

2) LSQ××W××series water-cooled chiller< /span>

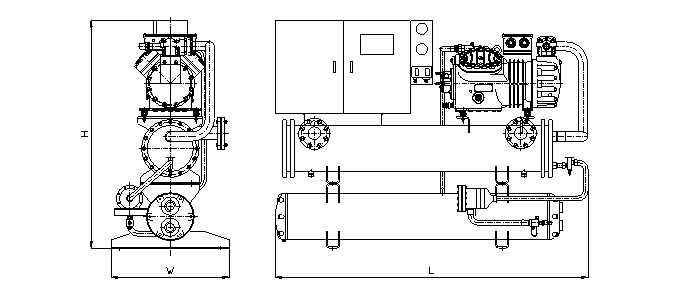

3) LSB××W×series water-cooled chiller span>

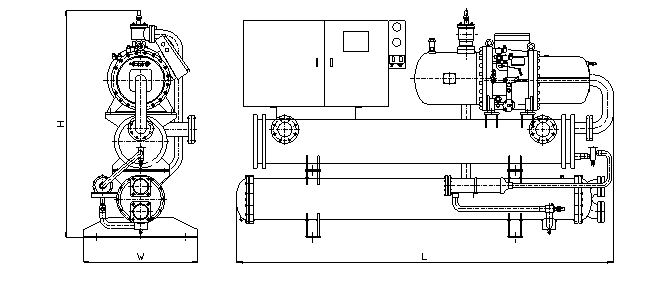

4) LSLG××W× series water-cooled chillers
