1. Product description
This series product features multi compressors paralledlyconnected to provide bigger capacity with intergrated control. The product has a compact structure thus smaller area is needed. The total capacity can be regulated in many phases, thus theoperation cost can be cut down effectively, and the operation reliability is enhanced greatly.
2. Main components
For air cooled unit：
●Compressor ●Crankcase heater ●vibration eliminator ●Oil separator ●Oil balance system ●Oil filter ●Receiver ●Drier & Filter ●Sight glasses ●Gas separator ●Suction filter ●Pressure limitator ●Pressure gauge ●Oil protecter(with oil pump)●Cylinder fan(Low temp.Unit) ●Electric control
Air-cooling Condenser orevaporating. Condenser is optional!
For water cooled unit：
●Compressor ●Crankcase heater ●vibration eliminator ●Oil separator ●Oil balance system ●Oil filter ●Water condenser ●Drier & Filter ●Sight glasses ●Gas separator ●Pressure limitator ●Pressure gauge ●Oil protecter(with oil pump)●Cylinder fan(Low temp.Unit) ●Electric control
Remark：
The compressor rack controller are employed as standard components.PLC controller is optional.

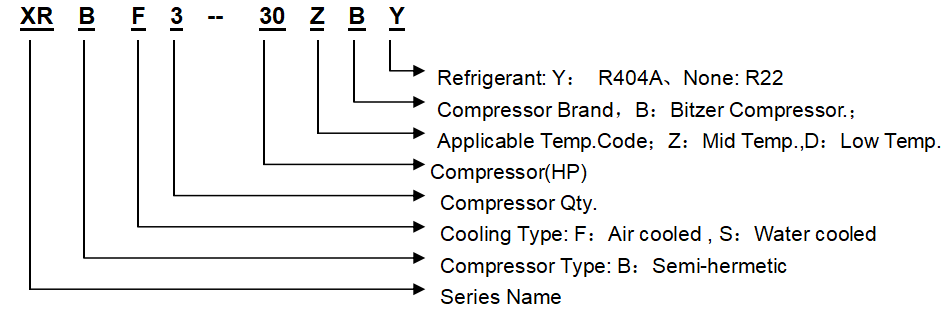

3. Model code
4. Specifications:
Air Cooled Compressor Racks
4.1 Air cooledM/H type Racks
Capcacity &wattare testedbased on Condensing Tem. 45℃；
(1)Mid /High typeair cooled 2 compressor racks

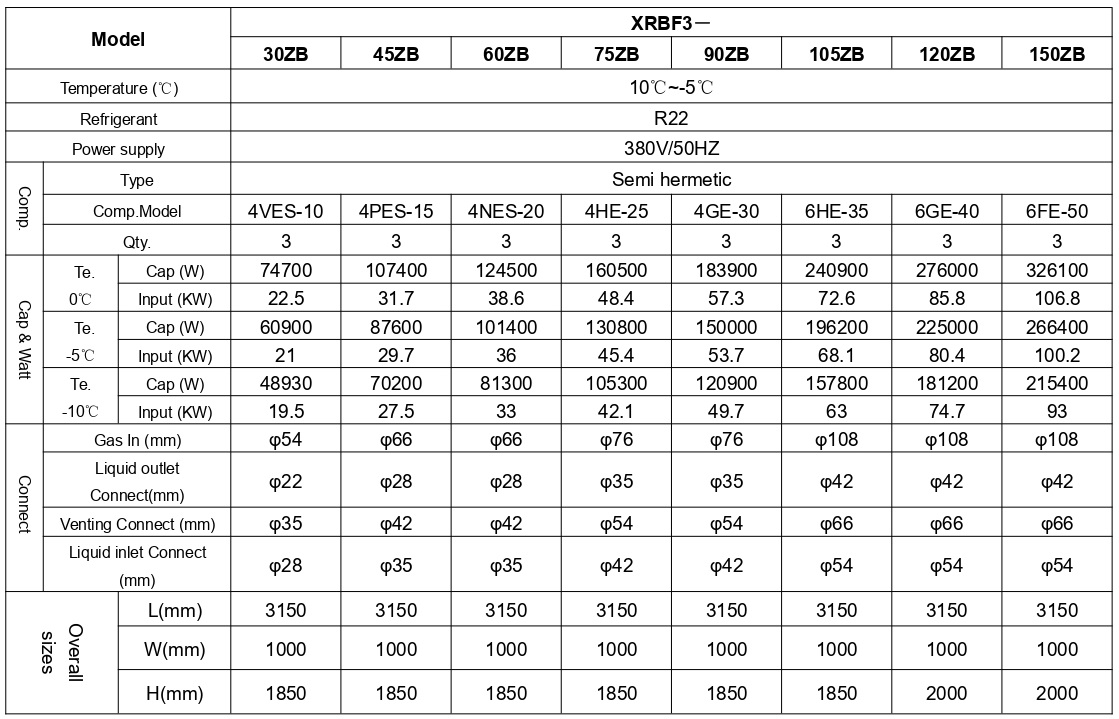

(2)Mid /High typeair cooled 3 compressor racks

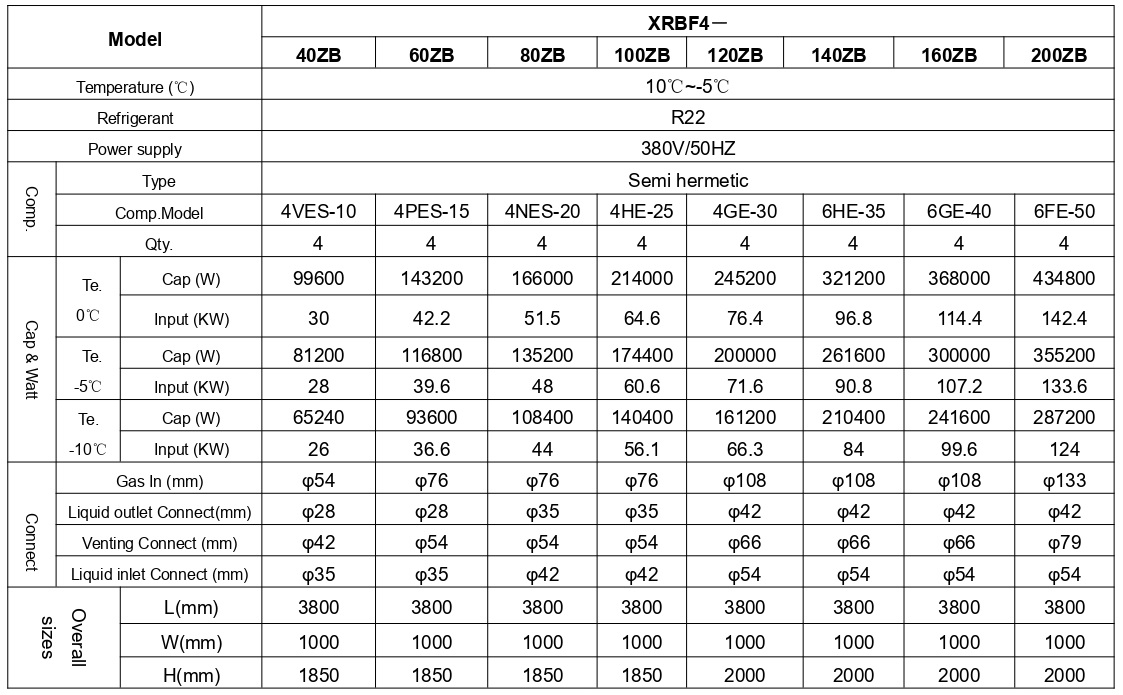

(3)Mid /High typeair cooled 4 compressor racks
4.2 Air cooledM/L type Racks
Capcacity &wattare testedbased on Condensing Tem. 45℃；CIC is necessary for operation beteperature below -23C.

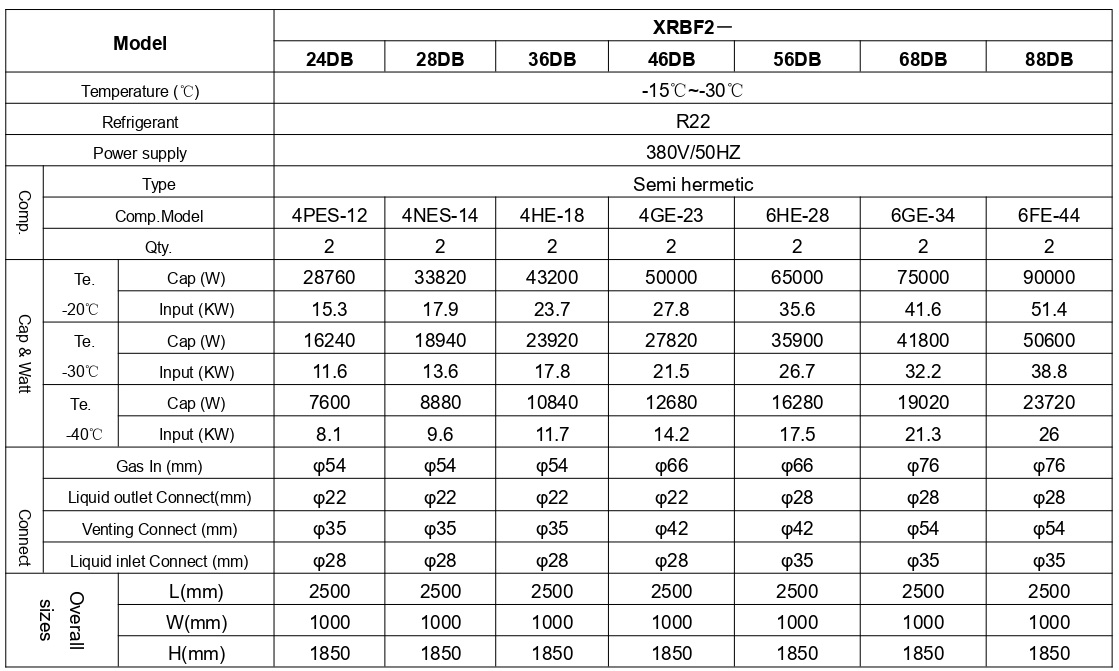

(1)Mid /Low typeair cooled 2 compressor racks

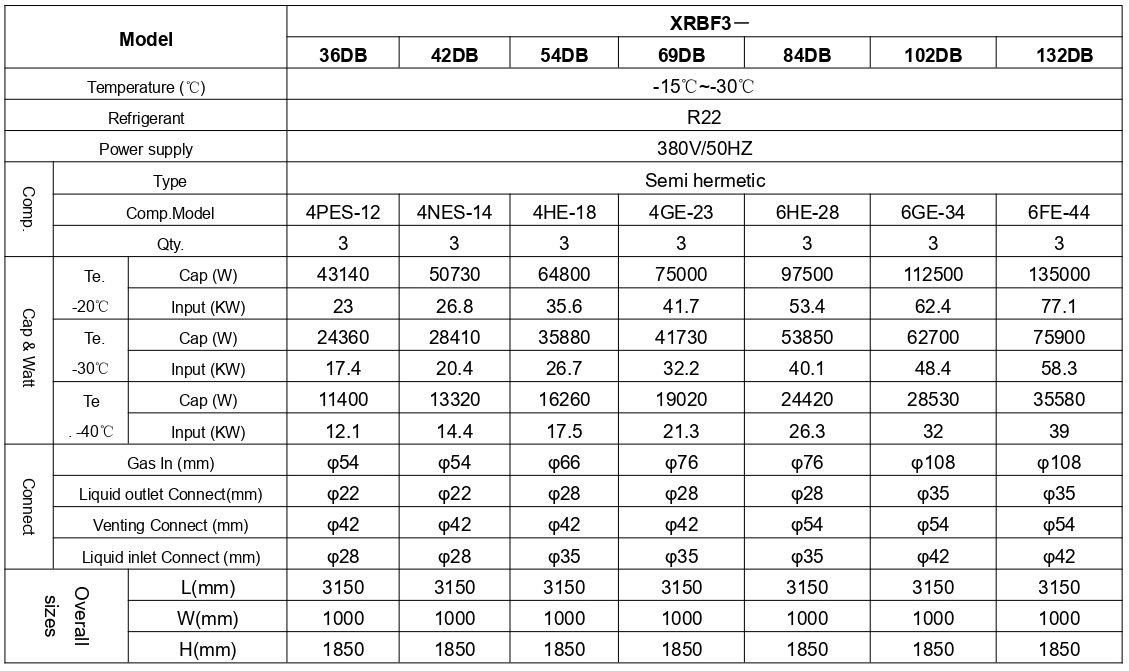

(2)Mid /Low typeair cooled 3 compressor racks

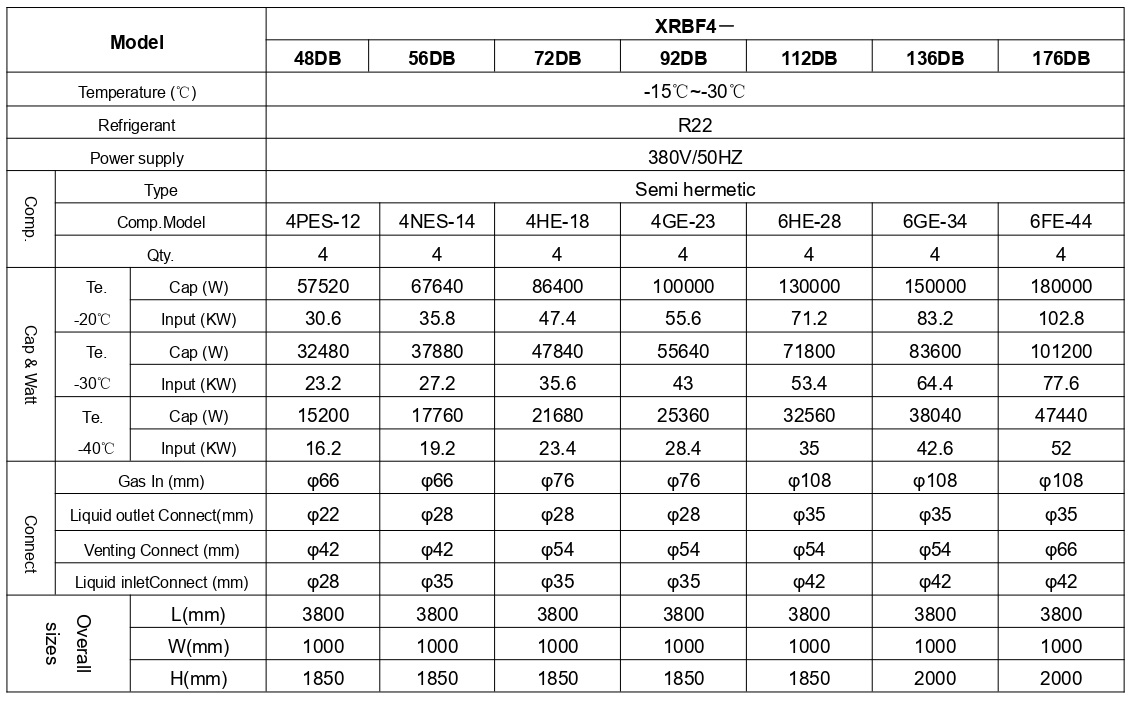

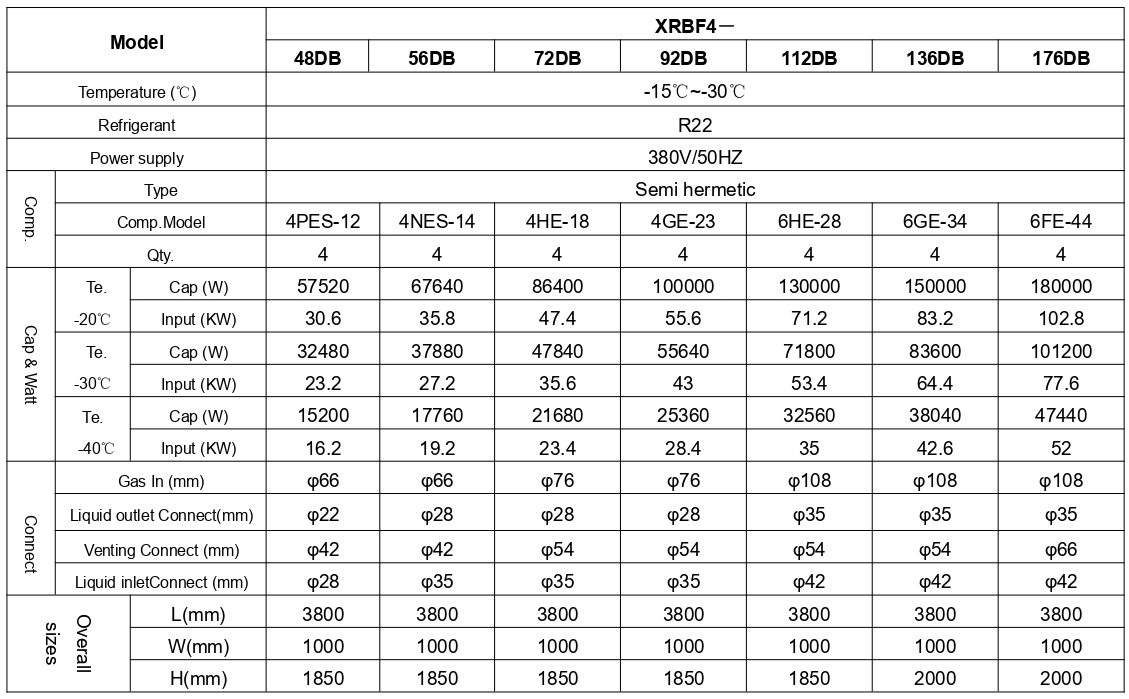

(3)Mid /Low typeair cooled 4 compressor racks
Water Cooled Compressor Racks
4.3 Water cooledM/H type Racks
Capcacity &wattare testedbased on Condensing Tem. 40℃；

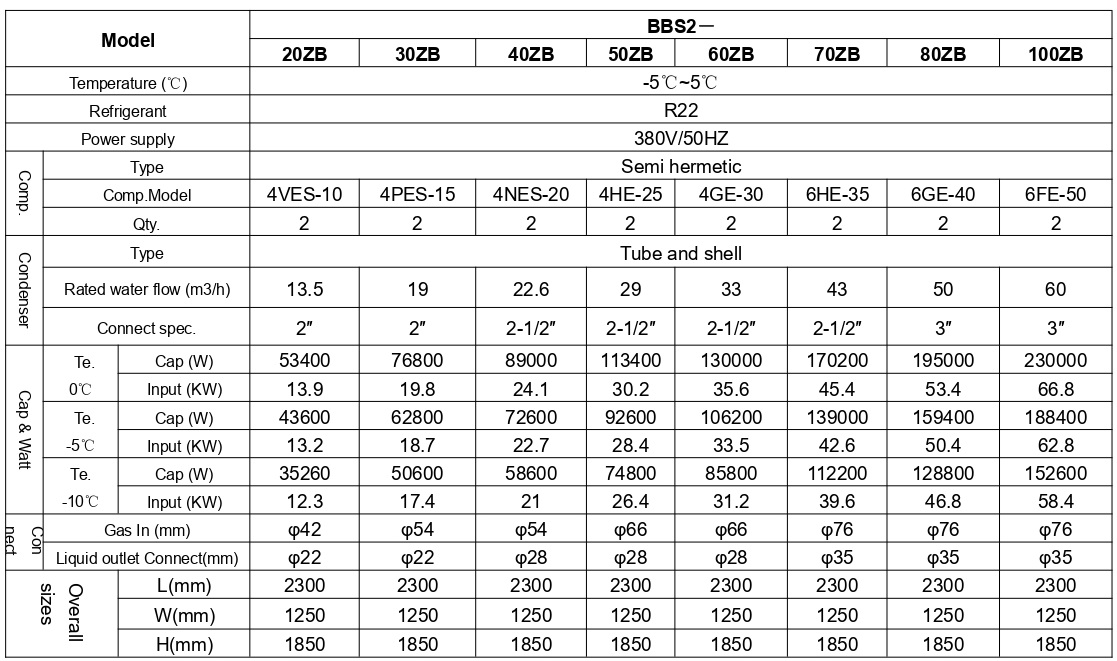

(1)Mid /High typewater cooled 2 compressor racks

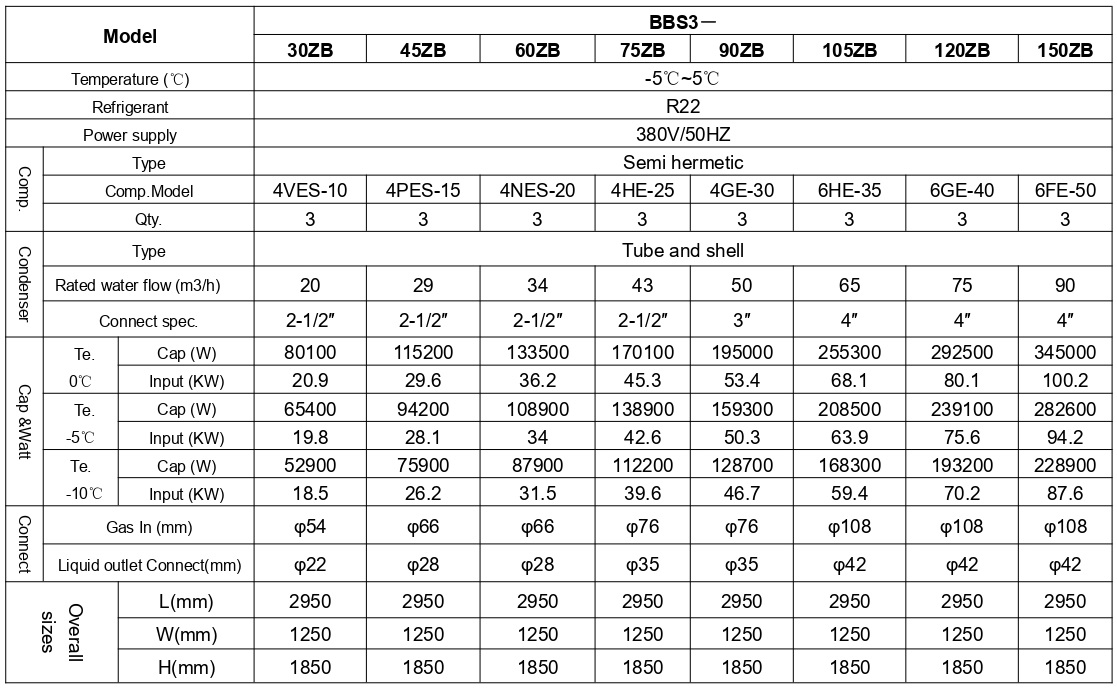

(2)Mid /High typewater cooled 3 compressor racks

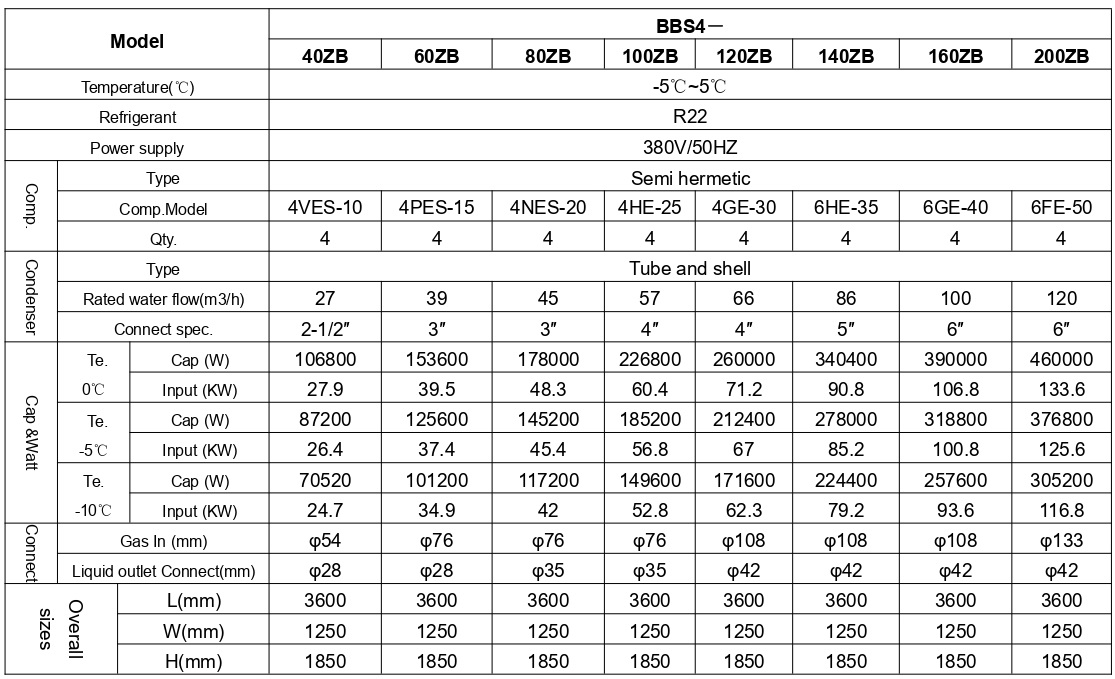

(3)Mid /High typewater cooled 4 compressor racks
4.4 Water cooledM/L type Racks
Capcacity &wattare testedon Condensing Tem. 40℃；CIC is necessary for operationevaporation temperature below-28℃.

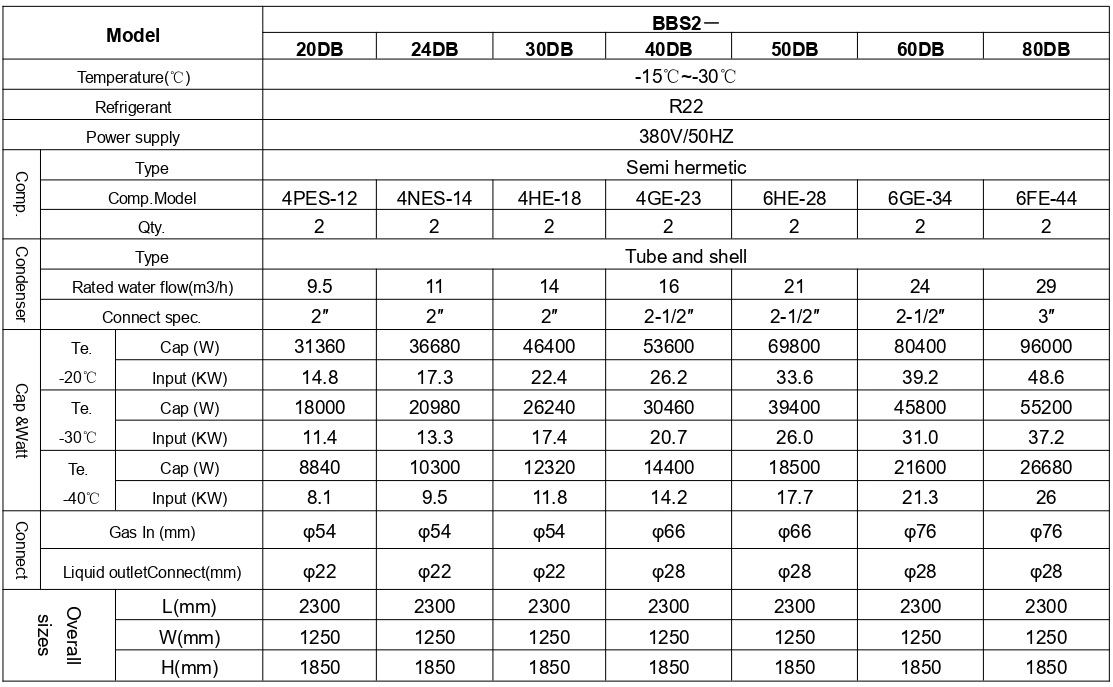

(1)Mid /low typewater cooled 2 compressor racks
(2)Mid /Low typewater cooled 3 compressor racks

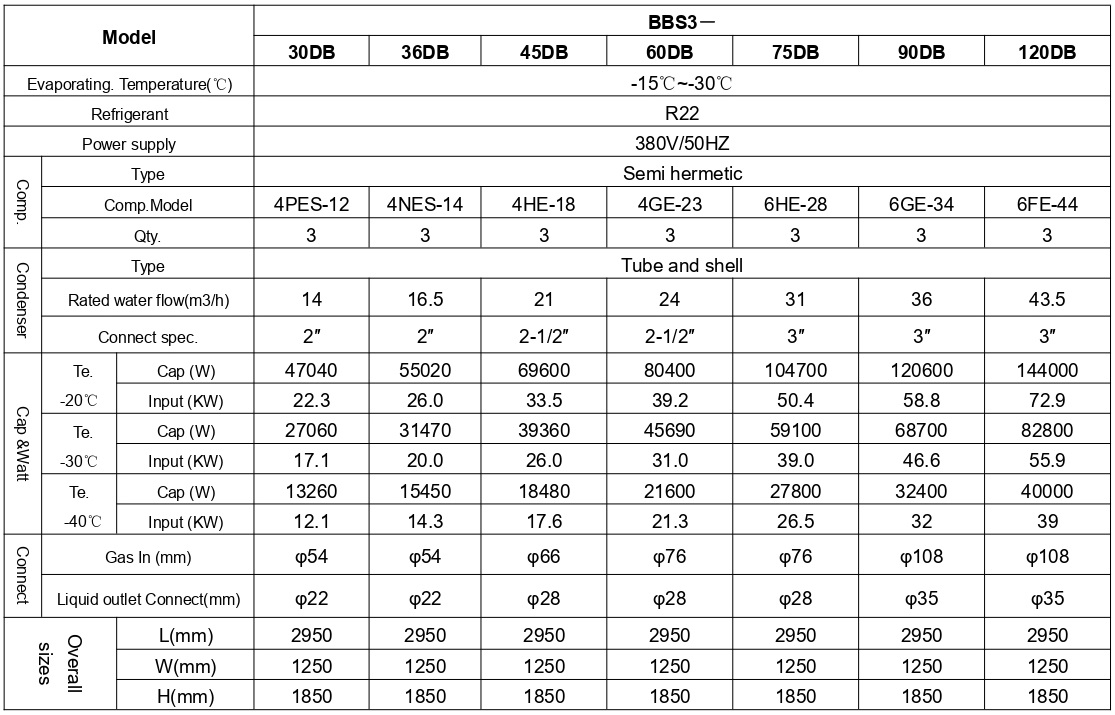

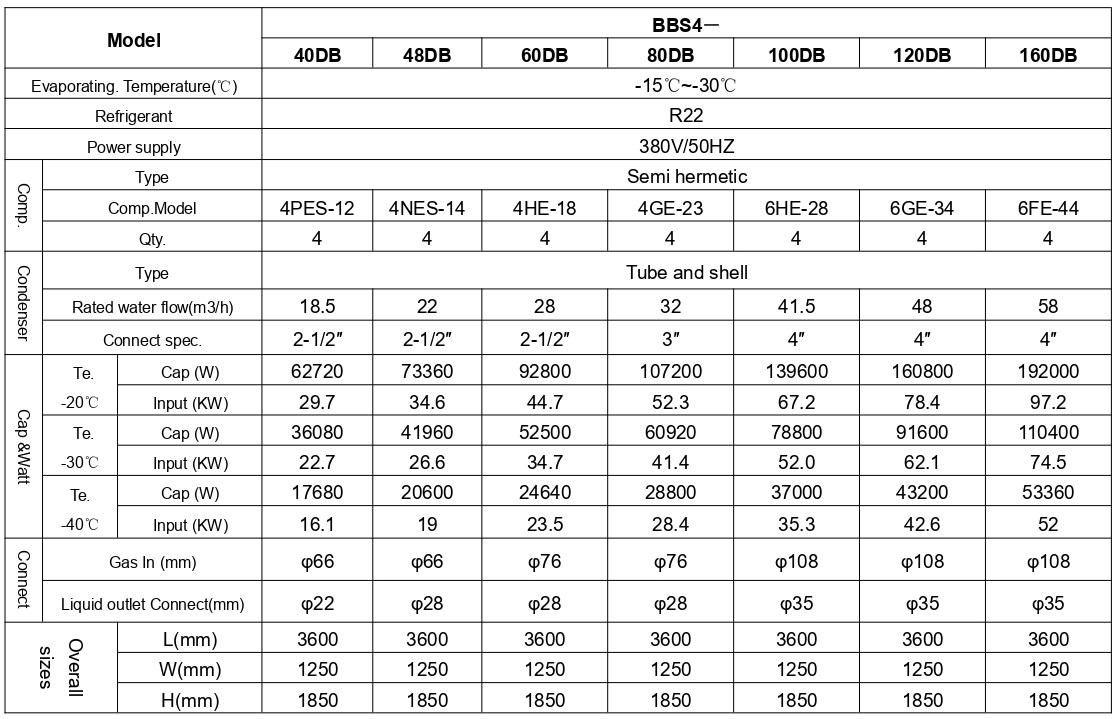

(3)Mid /Low typewater cooled 4 compressor racks

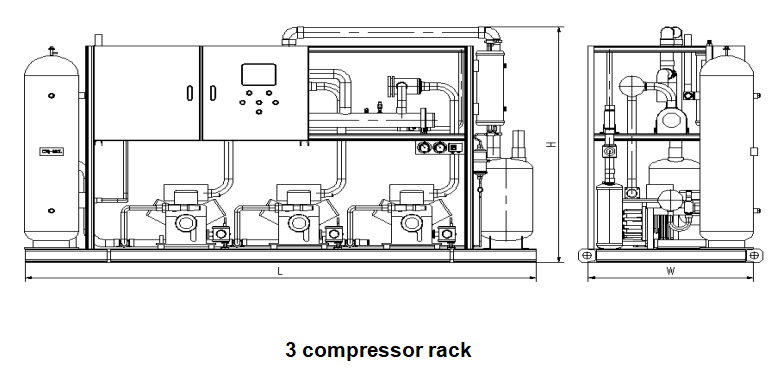

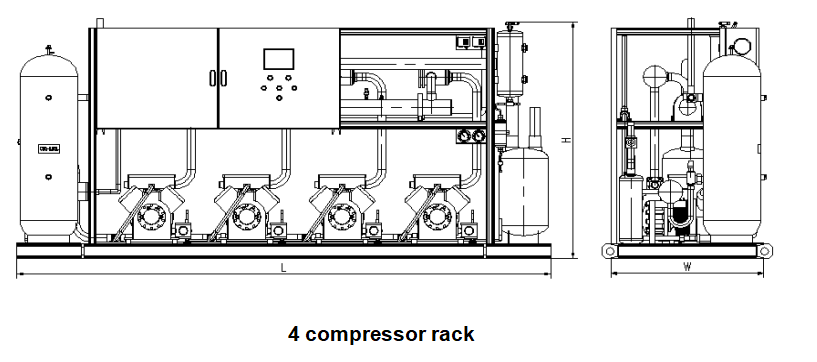

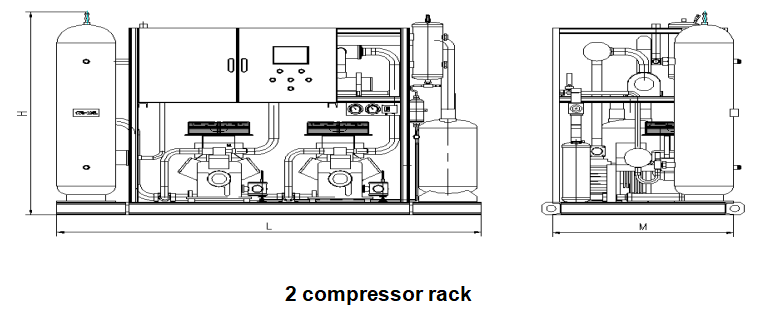

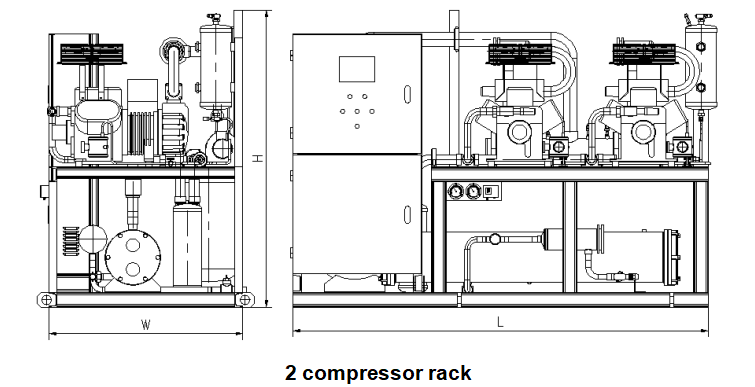

Diagrams of air cooled compressor racks

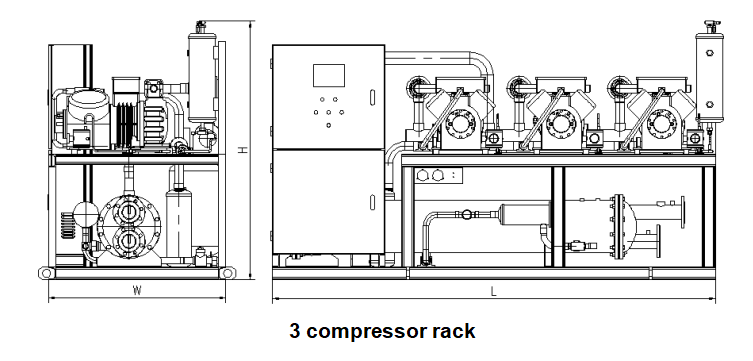

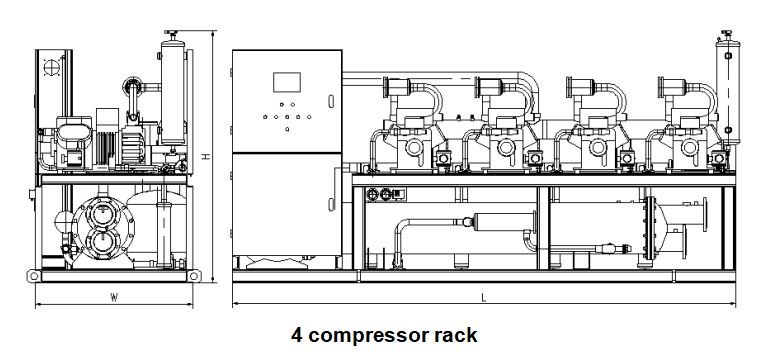

Diagrams of water cooled compressor racks
